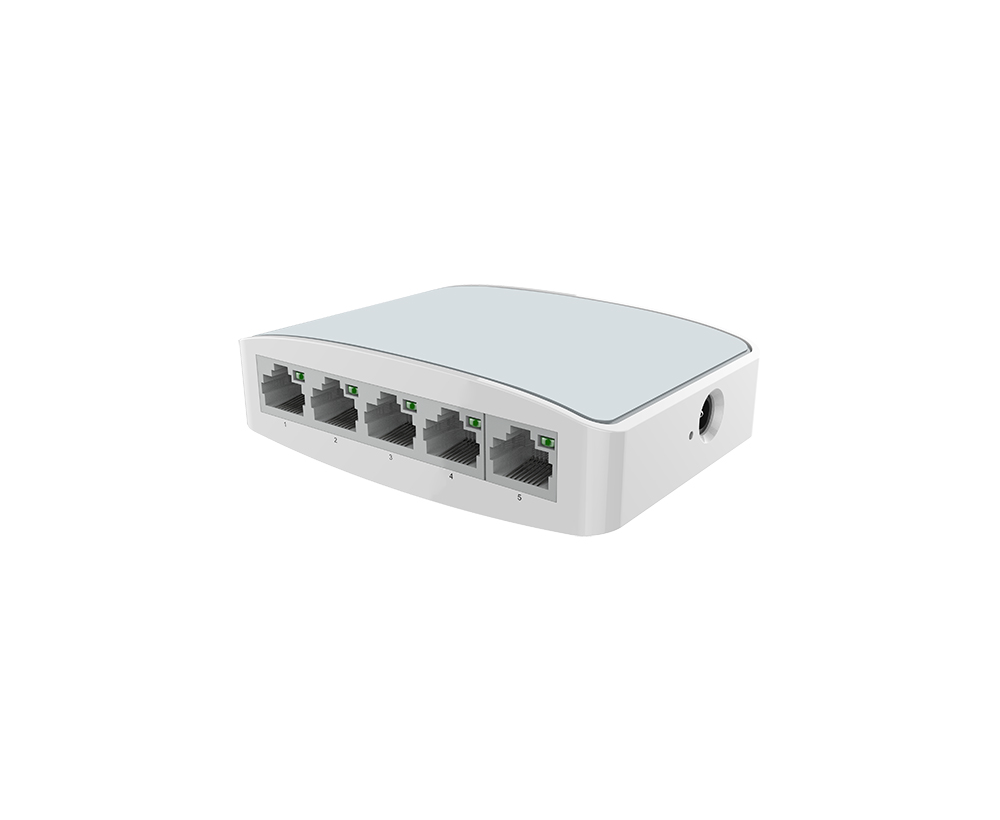

OVERVIEW
The ONV-H3005SM is a gigabit Easy managed Ethernet switch independently developed by ONV. It has 5*10/100/1000Base-T adaptive RJ45 ports. Each port can support wire-speed forwarding.
The ONV-H3005SM can support Web management, ONV-NMS management cloud platform, and mobile APP operation and maintenance management, which can realize security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. It has high reliability and is easy to install and maintain. It has a fast switching function and multiple access ports, which is suitable for access to LAN devices of various sizes. The large backplane and large cache switching chip solution improves the forwarding rate of large files and can effectively solve problems such as video freeze and picture loss in high-definition monitoring environments. It is suitable for hotels, banks, campuses, factory dormitories, small and medium-sized enterprises, and families to build economical, efficient, and real-time controllable transmission networks.
FEATURE
Gigabit rate, high-speed transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Gigabit RJ45 port, high speed, fast transmission, convenient for users to flexibly network, and meet various high-definition network requirements.
Extreme Optimization, minimalist application
◇ Real-time fault alarm and fault location.
◇ Remote upgrade, remote restart, and factory reset.
◇ Local platform, cloud platform, and mobile APP O&M management.
◇ Visualized network topology management, VLAN division, QoS, link aggregation, ring network management, port mirroring, port control, and bandwidth management.
◇ The easy-to-use network management function enables rapid network deployment and centralized operation and maintenance through the operation and maintenance platform.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, no fan, ABS and PC environmental protection plastic shell.

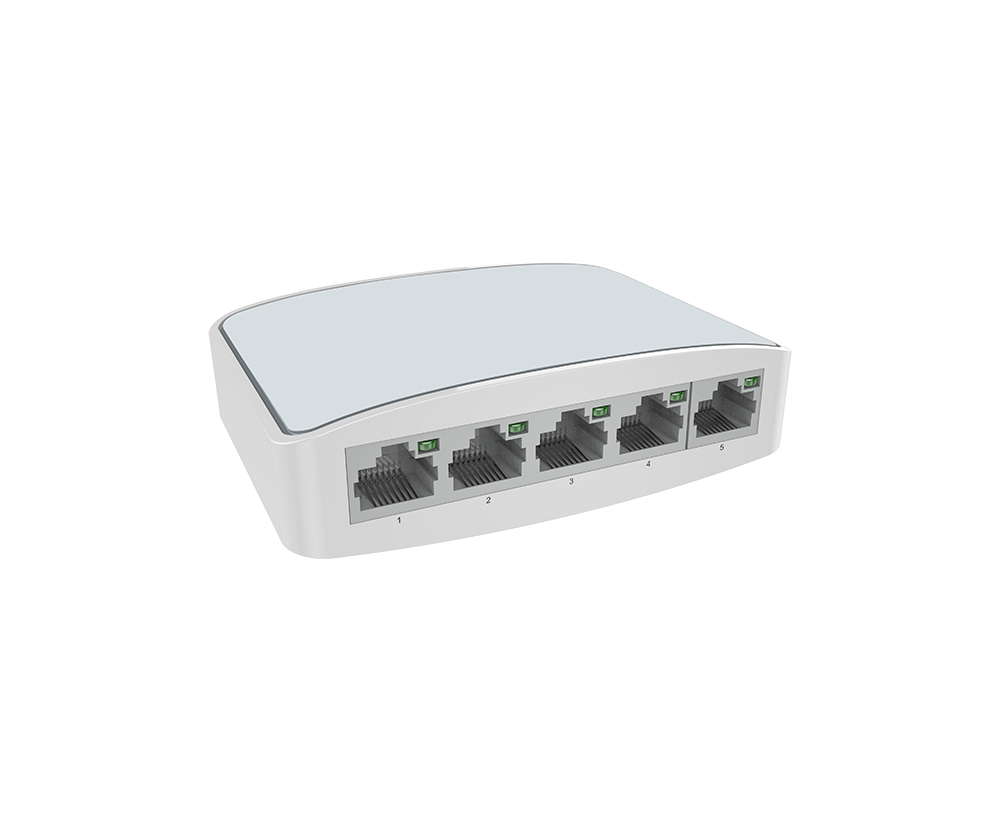

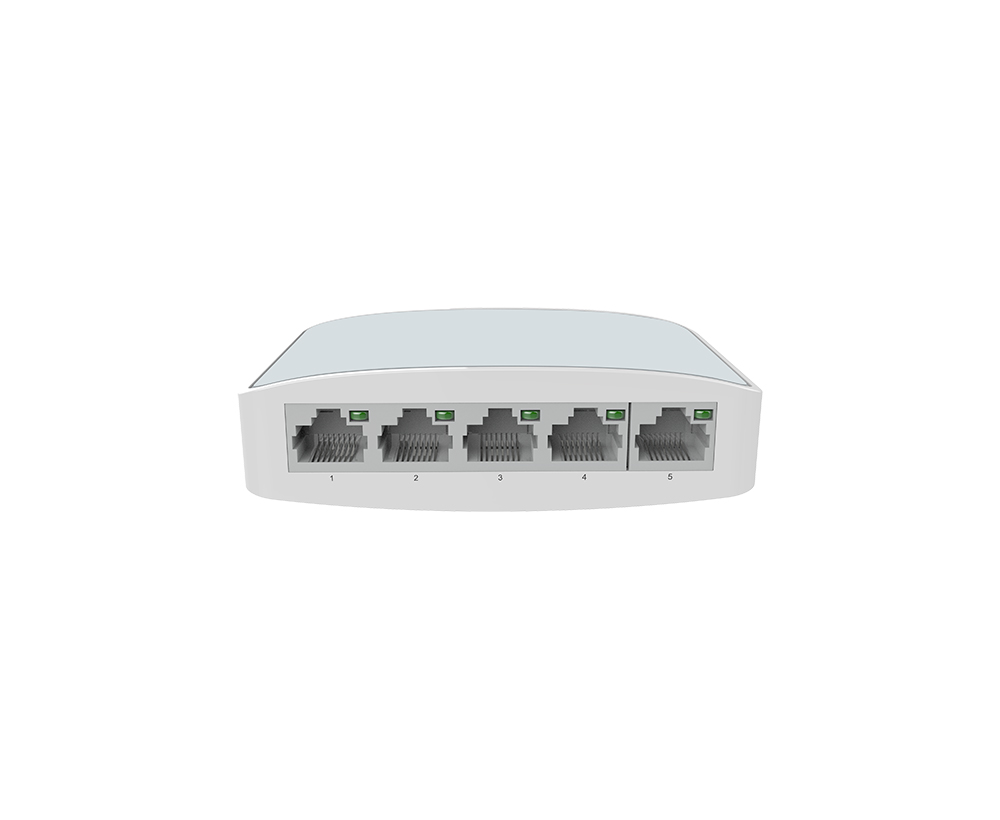

◇ The user-friendly panel can show the device status through the LED indicator of PWR and Link.

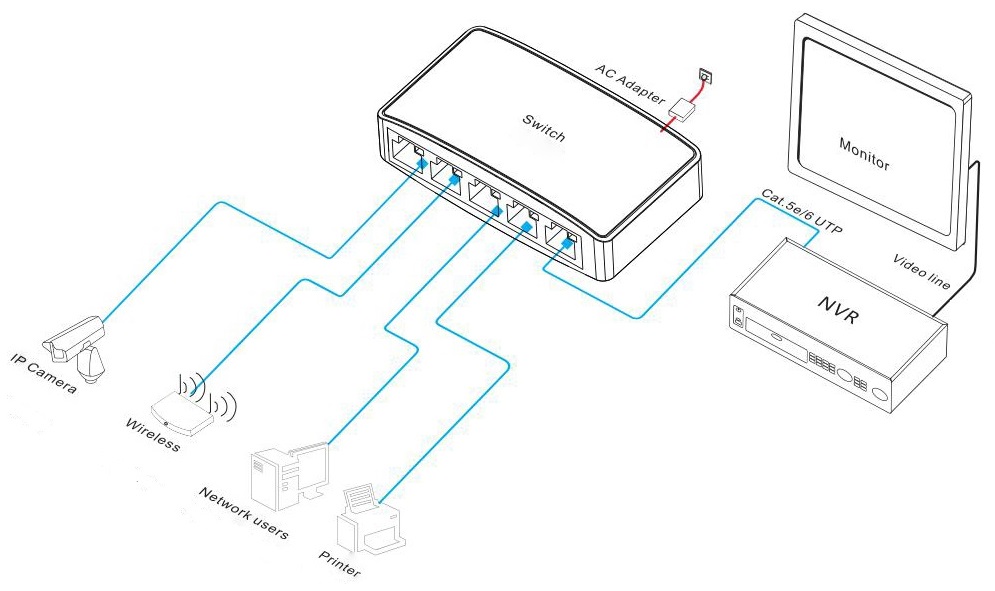

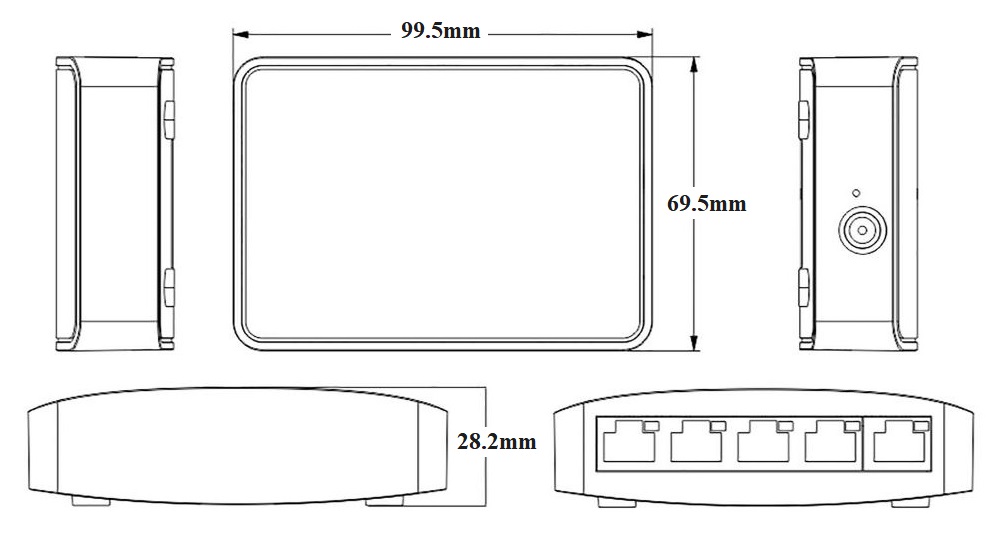

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
External Power Adapter |
|
ONV-H3005SM |
Easy managed Ethernet switch with 5*10/100/1000M RJ45 ports. It can support Web management, cloud platform, mobile APP operation and maintenance management, and external power adapter. |
5W |
|
ONV-H3008SM |
Easy managed Ethernet switch with 8*10/100/1000M RJ45 ports. It can support Web management, cloud platform, mobile APP operation and maintenance management, and external power adapter. |
5W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
5-port gigabit Easy managed Ethernet switch |
1 |
SET |
|
|
Power Adapter 5V/1A |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H3005SM |
ONV-H3008SM |
|
Interface Characteristics |
||
|
Fixed Port |
5*10/100/1000Base-T RJ45 ports (Data) |
8*10/100/1000Base-T RJ45 ports (Data) |
|
Ethernet Port |
Port 1-4/1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Chip Parameter |
||
|
Network Management Type |
Easy Web network management, cloud platform management |
|
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
10Gbps (non-blocking) |
16Gbps (non-blocking) |
|
Forwarding Rate @64byte |
7.44Mpps |
11.9Mpps |
|
MAC |
2K |
|
|
Buffer Memory |
2M |
|
|
Jumbo Frame |
9.2K |
|
|
LED Indicator |
Power: PWR (Green), Data: Link/Act (Green) |
|
|
Reset Switch |
Long press for 6 seconds and then release to restore default settings Short press 2 times (interval 1 second) to switch to the unmanaged state |
|
|
Power Supply |
||
|
Total PWR / Input Voltage |
5W/ DC5V |
|
|
Power Consumption |
Standby<1W, Full Load<4W |
Standby<2W, Full Load<5W |
|
Power Supply |
External power adapter, AC100~240V 50-60Hz, 0.56A |
|
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
0°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40°C~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
99.5*69.5*28.2mm |
140*77.5*34mm |
|
Net /Gross Weight |
0.1kg /0.2kg |
0.25kg /0.35kg |
|
Installation |
Desktop |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
|
Software Parameter |
||
|
Interface |
EEE Energy-saving and green Ethernet function Port traffic statistics, IEEE 802.3x flow control (Full-duplex) Port status display, Port duplex/ negotiation rate configuration |
|
|
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
|
|
Port Aggregation |
Static aggregation |
|
|
Loop Protection |
Loop protection function |
|
|
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
|
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
|
QoS |
Diff-Serv QoS, Priority Mark/ Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
|
|
Security |
Broadcast storm control, Port isolation, Port speed limit |
|
|
DHCP |
DHCP Snooping |
|
|
Management |
Mobile APP operation and maintenance management One-key recovery, Cable Diagnose, Web Management (https) ONV-NMS platform management (Local platform/ Cloud platform) |
|
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
|
