OVERVIEW

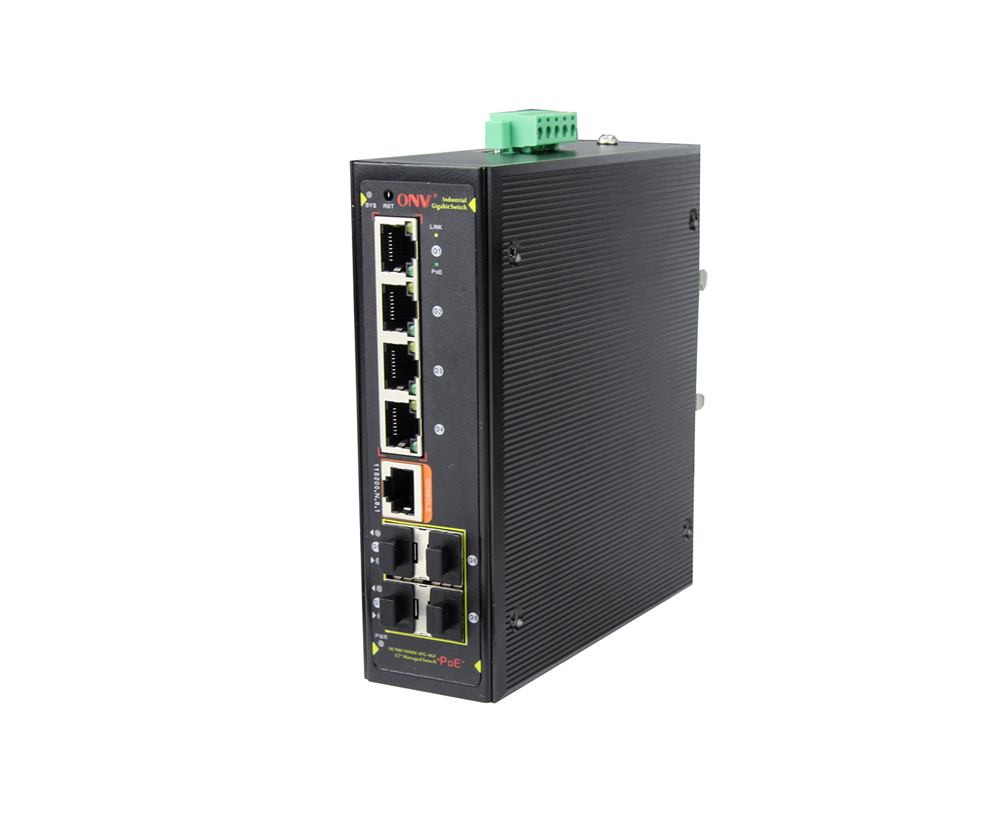

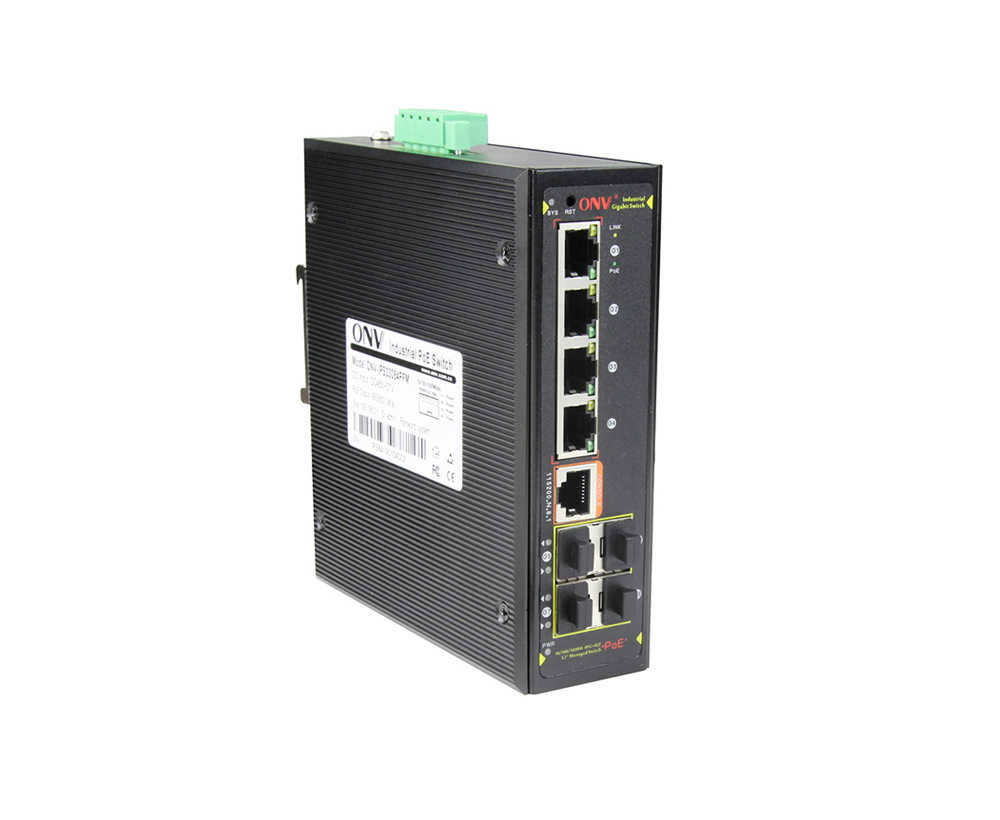

The ONV-IPS33084PFM is a Gigabit managed industrial PoE fiber switch independently developed by ONV. It has 4*10/100/1000Base-T adaptive RJ45 ports and 4*100/1000Base-X uplink SFP fiber ports. Port 1-4 can support IEEE 802.3 af/at PoE standard and the single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network.
The ONV-IPS33084PFM has L2+ network management function, supports IPV4/ IPV6 management, static route forwarding, security protection mechanism, ACL/QoS policy, and VLAN, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ PoE port support priority. When the remaining power is insufficient, priority is given to ensuring the power supply of high-priority ports to avoid equipment overload.
◇ 4*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, industrial automation systems, wireless coverage and other scenarios.
Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
◇ Ring network STP/RSTP/MSTP spanning tree protocol eliminates layer 2 loops and realizes link backup.
◇ QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
◇ Static aggregation and dynamic aggregation effectively increase link bandwidth, achieve load balancing, and link backup, and improve link reliability.
◇ Support IGMP V1/V2 multicast protocol and IGMP Snooping to meet the needs of multi-terminal high-definition video surveillance and video conferencing access.
Security
◇ Port isolation and storm control.
◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.
◇ Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
◇ CPU monitoring, memory monitoring, Ping detection, and cable detection.
◇ HTTPS, SSLV3, SSH V1/V2, and other encryption methods make management more secure.
◇ RMON, system logs, and port traffic statistics facilitate network optimization and transformation.
◇ LLDP facilitates the network management system to query and determine the communication status of the link.
◇ Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.

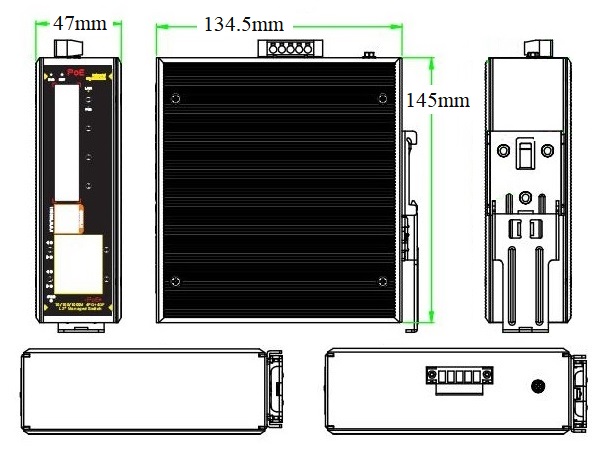

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS33084PFM |
L2+ managed industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 4*100/1000M uplink SFP fiber ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
60W/120W |
|
Note: The optical module and power supply are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
8-port Gigabit managed industrial PoE switch |
1 |
Set |
|
|
RJ45-DB9 Adapter Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, supports DDM function and hot plugging. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
65W Desktop Power Adapter |
GWS-AP65-52 |
Desktop 65W single set of output power adapter Input Voltage: AC100V-240V 50-60Hz, 1.1A Output Voltage: DC52V, 1.25A Operation Temperature: -20℃ to +65℃ |
PC |
|
110W Desktop Power Adapter |
GWS-AP110-52 |
Desktop 110W single set of output power adapter Input Voltage: AC100V-240V 50-60Hz, 2.0A Output Voltage: DC52V, 2.15A Operation Temperature: -20℃ to +65℃ |
PC |
|
60W DIN Rail Industrial Power Supply |
GWS-DP60-48 |
DIN Rail 60W single set of output power supply Input Voltage: AC100V-240V 50-60Hz, 1.0A Output Voltage: DC48V, 1.25A Operation Temperature: -40℃ to +70℃ |
PC |
|
120W DIN Rail Industrial Power Supply |
GWS-DP120-48 |
DIN Rail 120W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 2.3A Output Voltage: DC48V, 2.5A Operation Temperature: -40℃ to +70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33064PFM |
L2+ managed industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
|
ONV-IPS33108PFM |
L2+ managed industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
|
ONV-IPS33168PFM |
L2+ managed industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 8*100/1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
|
ONV-IPS33168PFM-4GF |
L2+ managed industrial PoE fiber switch with 12*10/100/1000M RJ45 ports and 4*100/1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
|
ONV-IPS36168PFM |
L2+ managed industrial PoE fiber switch with 12*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ fiber ports.. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS33084PFM |
|
Interface Characteristics |
|
|
Fixed Port |
1*Console RS232 port (115200, N, 8,1) 4*10/100/1000Base-T PoE ports (Data/ Power) 4*100/1000Base-X uplink SFP fiber ports (Data) 2 set V+, V- redundant DC power port (5P industrial Phoenix terminal) |
|
Ethernet Port |
Port 1-4 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Management Type |
L2+ |
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
16Gbps (non-blocking) |
|
Forwarding Rate@64byte |
11.9Mpps |
|
CPU |
416MHz |
|
DRAM |
1G |
|
FLASH |
128M |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Fiber port: L/A (Green), PoE: PoE (Green), Power/ System: SYS (Green), Network: Link (Yellow) |
|
Reset Switch |
Yes (Press and release for 10 seconds, the PoE switch will restore to factory settings) |
|
PoE& Power Supply |
|
|
PoE Port |
Port 1-4 |
|
PoE Management |
PoE power supply total power limit configuration Power delay start, PoE work and time scheduling Port PoE working status display, Port PoE output priority configuration Port PoE output power distribution, PoE on/off, af/at power distribution |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<7W, Full load af<60W, at<120W |
|
Input Voltage/ Interface |
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-40~+80°C, 5%~90% RH Non condensing |
|
Storage Temp/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
145*134.5*47mm |
|
Net /Gross Weight |
0.75kg/ 1.0kg |
|
Installation |

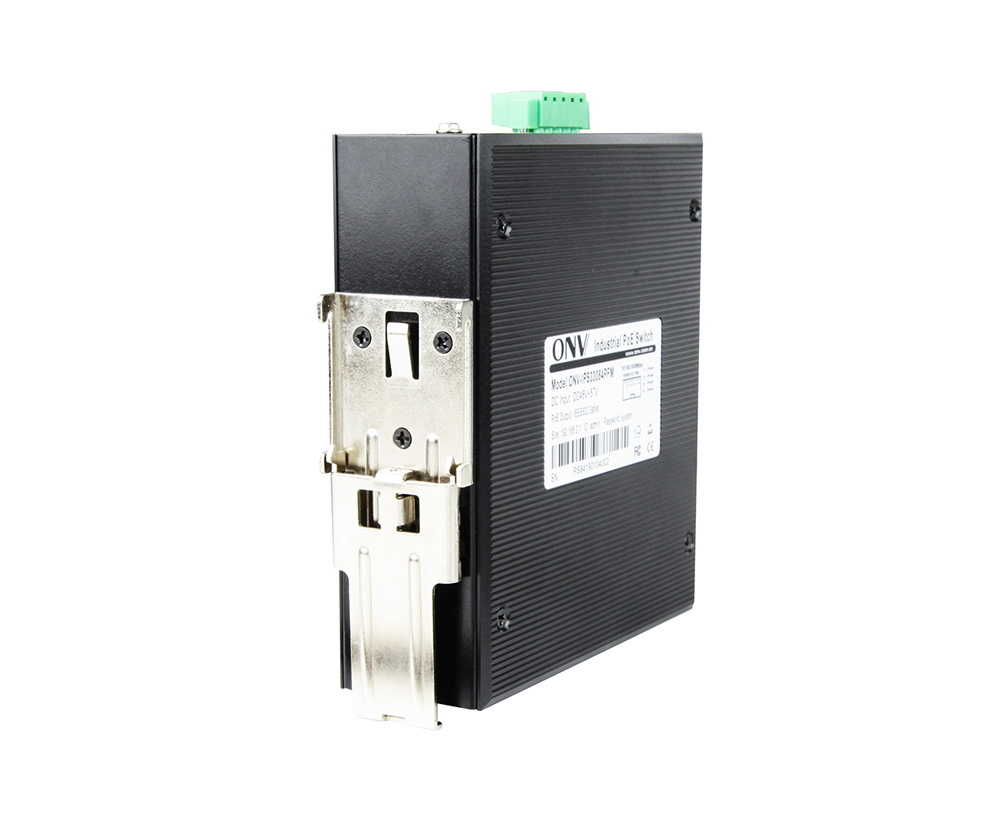

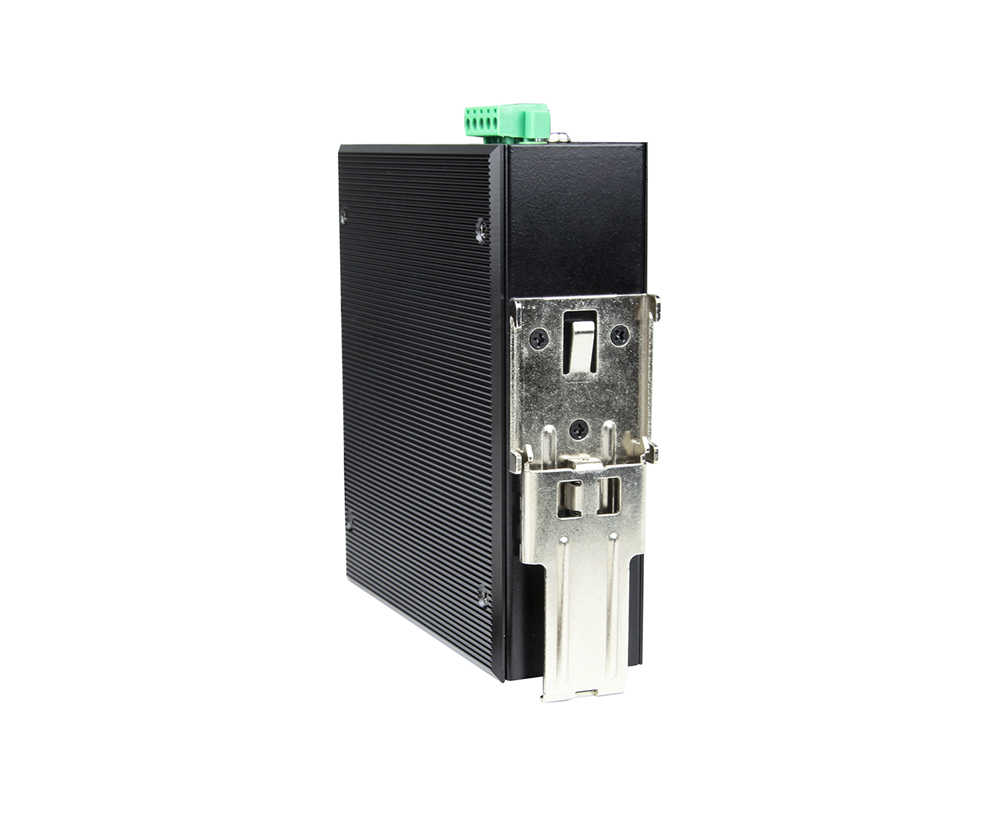

Desktop, 35mm DIN Rail |
|
Certification& Warranty |
|
|
Lightning Protection |
IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall) |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
Port temperature protection setting IEEE802.3x flow control (Full duplex) Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port, mini particle size is 64Kbps. |
|
L3 Feature |
ARP protocol max 1024 entries Static routing/ default routing max 128 entries L2+ network management, IPV4/IPV6 dual stack management L3 routing and forwarding, and communication between different network segments and different VLAN |
|
VLAN |
Access, Trunk, and Hybrid port configurations Port-based VLAN (4K), IEEE802.1q, QinQ configuration Voice VLAN, Protocol-based VLAN, MAC address-based VLAN |
|
Port Aggregation |
LACP, Static aggregation, Max 4 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Ring Network Protocol |

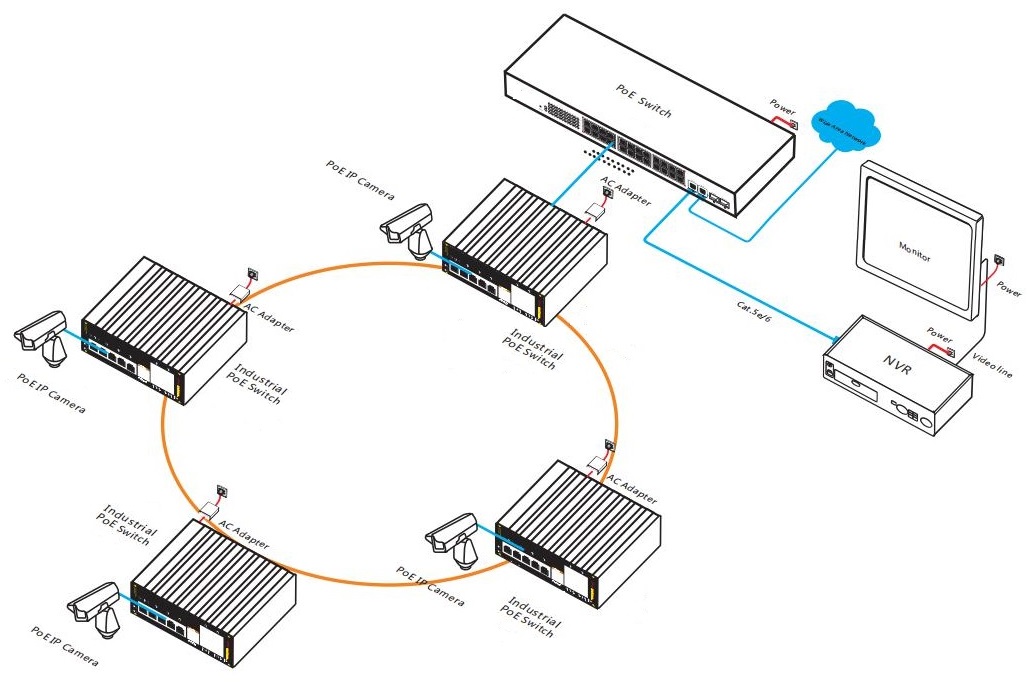

G.8032 (ERPS), 250 Ring at most, Max 250 devices per ring. Recovery time less than 20ms |
|
Multicast |
MLD Snooping, Multicast VLAN, IGMP Snooping v1/v2/v3, Max 1024 multicast groups, Fast log out |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark |
|
ACL |
Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection Anti-DoS attack, AAA & RADIUS & TACACS+ certification IP-MAC-VLAN-Port binding, ARP inspection, MAC learning limit |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
|
Management |
Web network management (https) Link Layer Discovery Protocol (LLDP) Viewing CPU Instant Utilization Status NTP clock, One click restore, SNMP V1/V2/V3 Cable status check, Ping detection, System work log ONV-NMS platform cluster management (LLDP+SNMP) Console/ AUX Modem/ Telnet/ CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
