OVERVIEW

PoE injector is also called the Ethernet-powered mid-span equipment. The centralized PoE injector is also called the PoE module. The ONV-PSE3301AC is an unmanaged gigabit PoE injector independently developed by ONV. It has 1*10/100/1000M RJ45 port. RJ45 PoE output port can support IEEE802.3af/at PoE standard, and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises.

Unmanaged models, plug and play, no configuration, simple and convenient to use. PoE injector provides simple, economical, high-performance, intelligent Ethernet PoE power and data communication solutions. It is easy to use, easy to install, superior in performance, and cost-effective. It is an ideal choice for customers to improve project quality. It can expand the traditional power line network, reduce the use of power lines, and effectively reduce the construction cost and maintenance cost of the project under the condition that the power supply cannot be provided at the remote end.

FEATURE

Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out ) easy to connect

◇ Using 1 Ethernet in and 1 Ethernet out connection mode, 1*10/100/1000Mbps RJ45 port convenient connection, and simple maintenance.

◇ Support non-blocking wire-speed forwarding.

Smart PoE power supply function

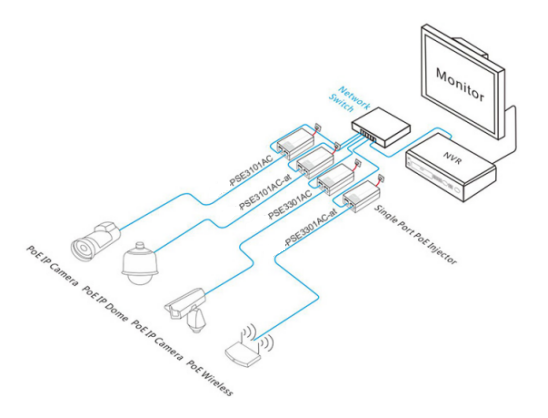

◇ 1*10/100/1000Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Support desktop and wall-mounted installation.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, PoE.

◇ Low power consumption, no fan design, the flame-retardant plastic shell is exquisite and beautiful.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

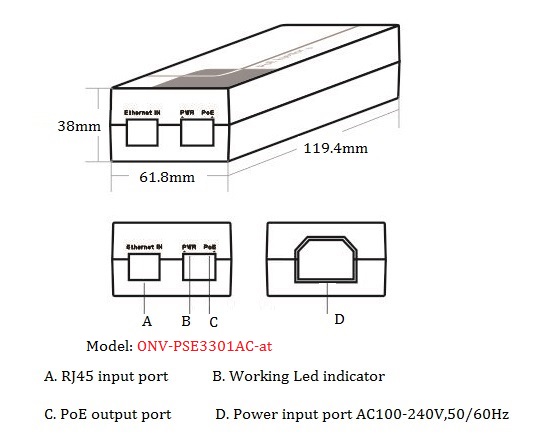

DIMENSION

ORDERING INFORMATION

PACKING LIST
