10/100M 10 puertos 24V interruptor PoE no estándar-Conmutador PoE

10/100M 10 puertos 24V interruptor PoE no estándar

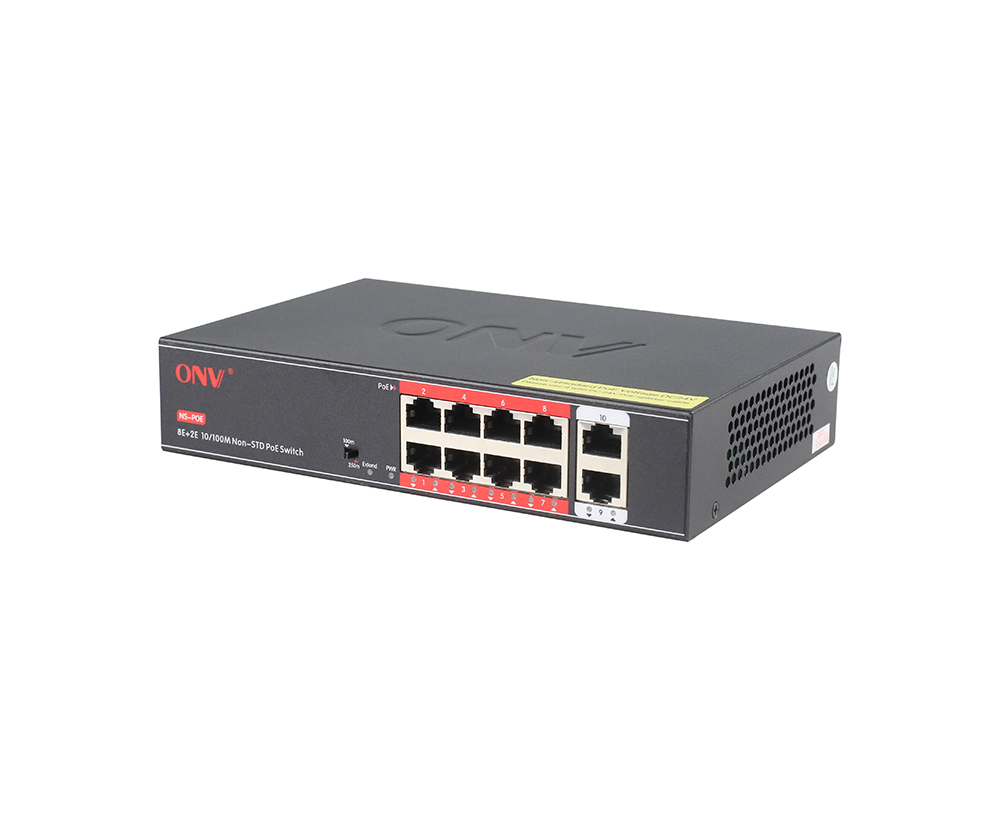

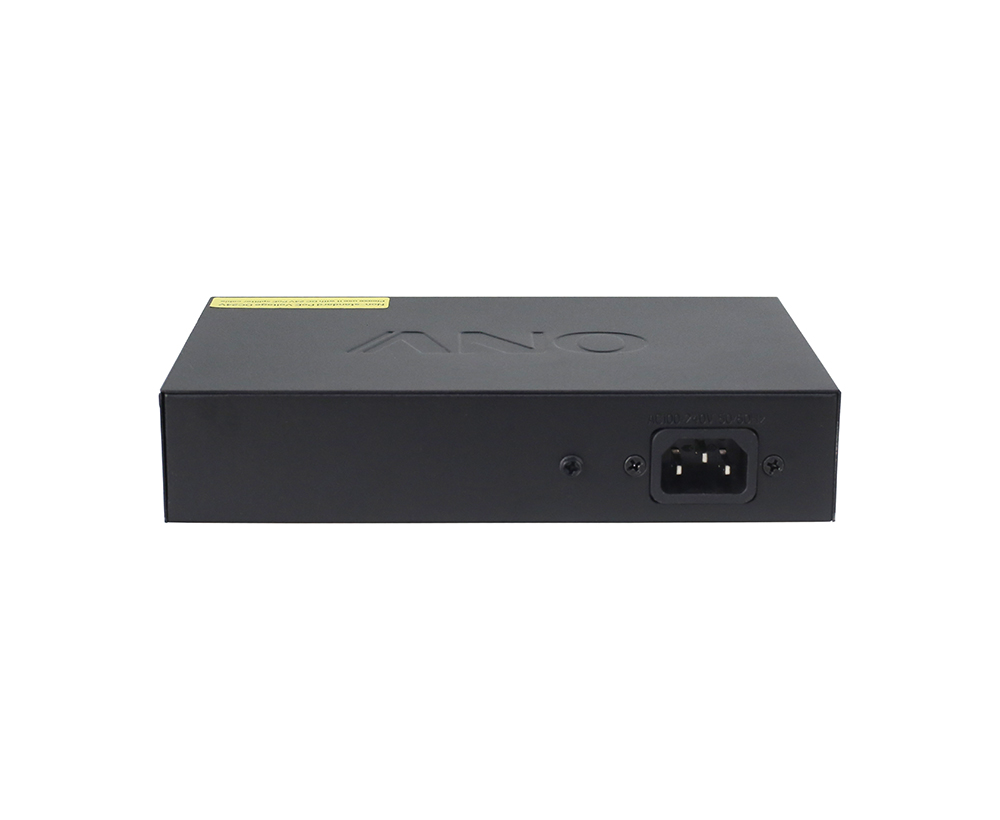

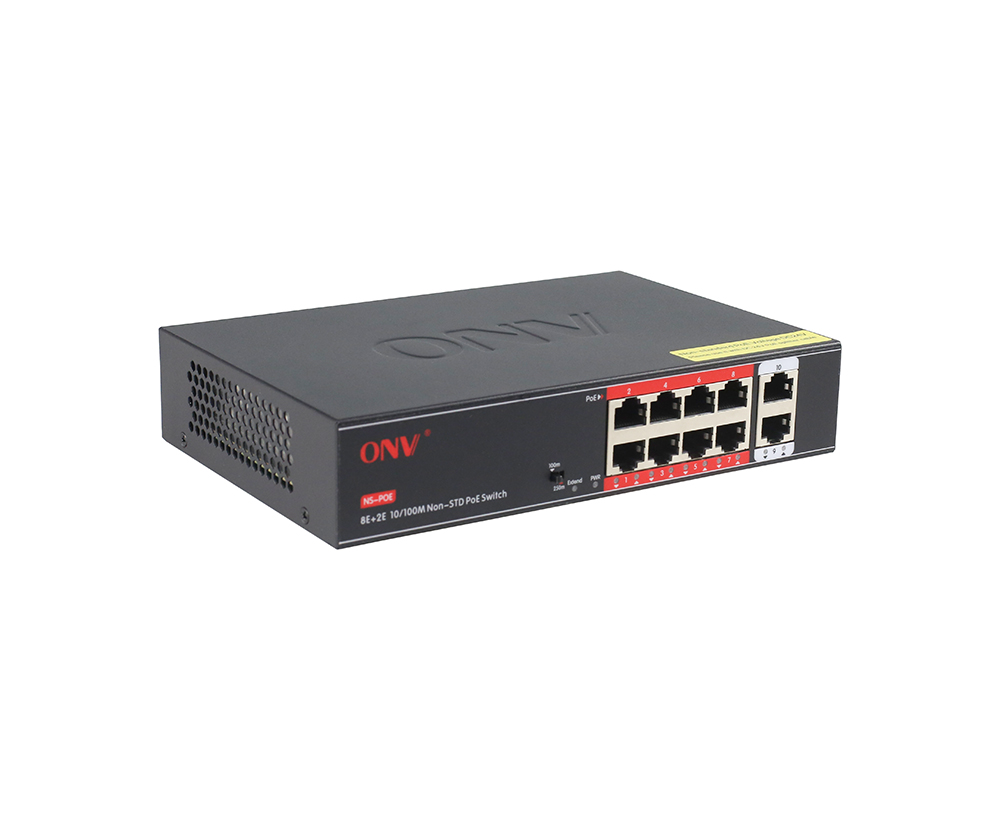

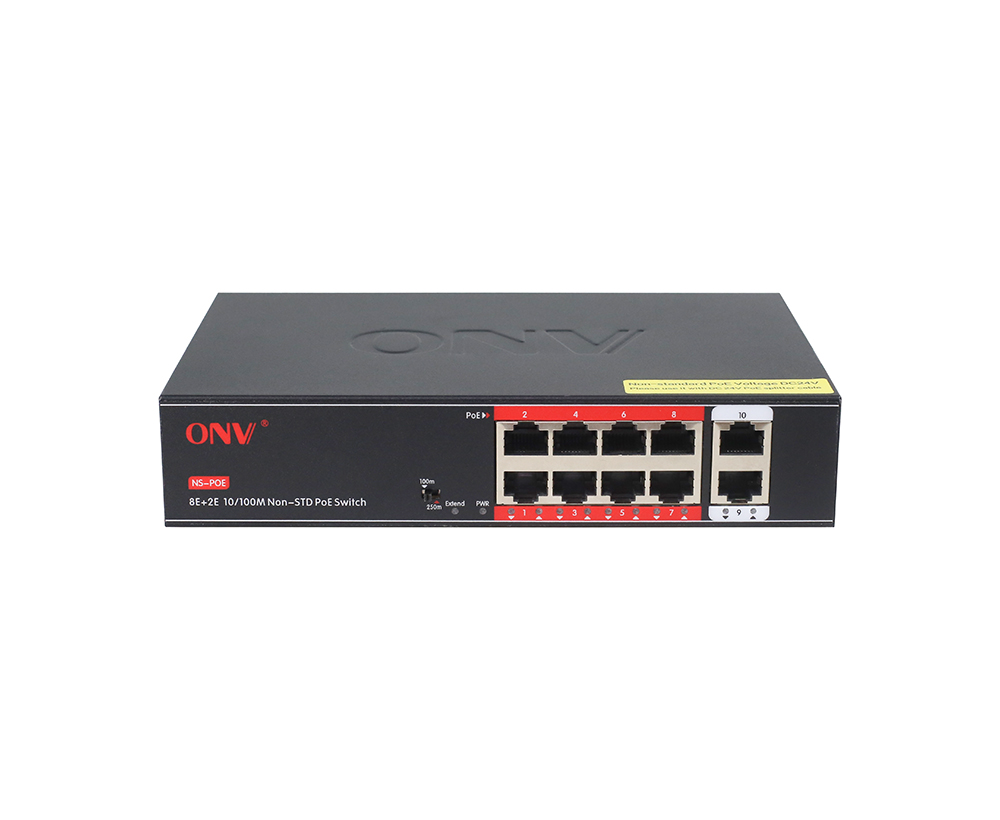

Modelo： ONV-H2108PL

Conmutador PoE no gestionado con puertos RJ45 de 10*10/100M. Puerto 1-8 apoyo DC24V PoE salida. El puerto 1-8 puede apoyar el puerto VLAN y la transmisión de 10M/250 metros cuando el interruptor funcional está en los 250 m. Fuente de alimentación incorporada 120W.

Quiero hacer una investigación

Información general
Especificación técnica
Aplicación
Documentos
Productos relacionados

OVERVIEW

The ONV-H2108PL is a 10/100M non-standard PoE switch independently developed by ONV. It has has 10*10/100M RJ45 ports. Port 1-8 can can support 24V non-standard PoE power supply and single-port PoE power up to 24W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge), or the corresponding non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100M access

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Provides 10*10/100M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

Smart PoE power supply

◇ 8*10/100Base-TX RJ45 ports support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

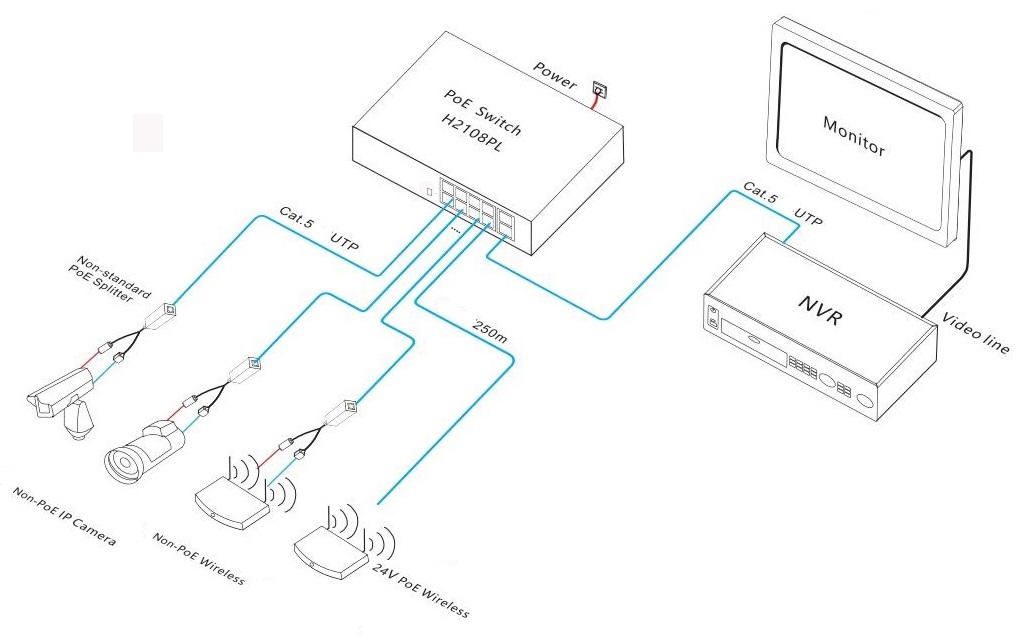

◇ Quickly implement PoE network cable power supply through the switch to directly connect non-standard electrical equipment or the switch and non-standard PoE splitter cable.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel can show the device status through the LED indicator of Power.

◇ Port 1-8 supports 10M/250 meters transmission when the functional switch is on 250m.

◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.

◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.

DIMENSION

ORDERING INFORMATION

Model	Description	Built-in Power Supply
ONV-H2108PL	Unmanaged PoE switch with 10*10/100M RJ45 ports. Port 1-8 support DC24V PoE output. Port 1-8 can support port VLAN and 10M/250 meters transmission when the functional switch is on 250m. Built-in power supply.	120W

PACKING LIST

Packing List	Content	Qty	Unit
	10-port 10/100M non-standard PoE switch	1	Set
	AC Power Cable	1	PC
	User Guide	1	PC
	Warranty Card	1	PC

TECHNICAL SPECIFICATION

Model	ONV-H2108PL
Interface Characteristics
Fixed Port	210/100Base-TX uplink RJ45 Ports (Data) 810/100Base-TX 24V PoE ports (Data /Power)
Ethernet Port	Port 1-10 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Functional Switch (100m/250m)	250m: 1-8 can support port VLAN and 10M/250 meters transmission when the functional switch is on 250m. Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect.
Twisted Pair Transmission	10BASE-TX: Cat5 or later UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	2Gbps (Non-blocking)
Forwarding Rate@64byte	1.488Mpps
MAC	2K
Buffer Memory	1.25M
Jumbo Frame	1536byte
LED Indicator	Power: PWR (Green), Network: L/A (Green), Function switch: 100m/250m (Green)
PoE& Power Supply
PoE Port	Port 1-8
Power Supply Pin	4/5(+), 7/8 (-)
Max Single Port PoE Power	24W, non-standard PoE+
Total PWR/ Input Voltage	120W/ (AC100-240V)
Power Consumption	Standby<5W, Full load<120W
Power Supply	Built-in power supply, AC100~240V, 50-60Hz, 2.2A
Physical Parameter
Operation Temp/ Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	19513040mm
Net /Gross Weight	0.75kg/ 1.0kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	1 year, lifelong maintenance.
