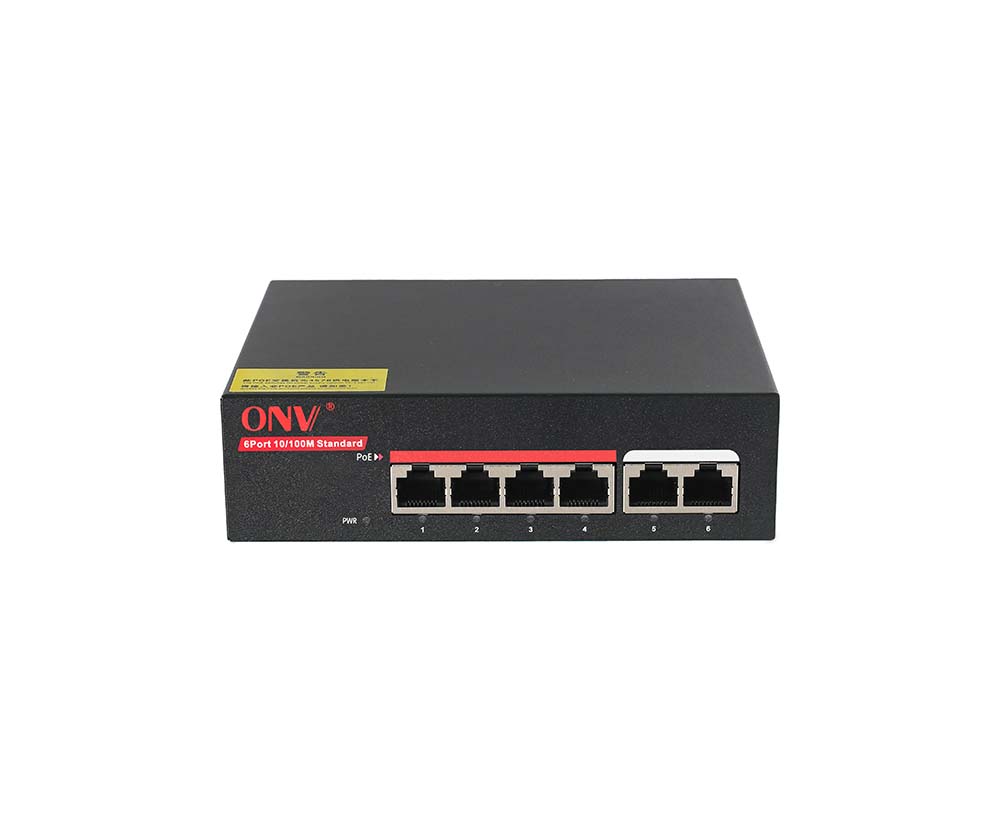

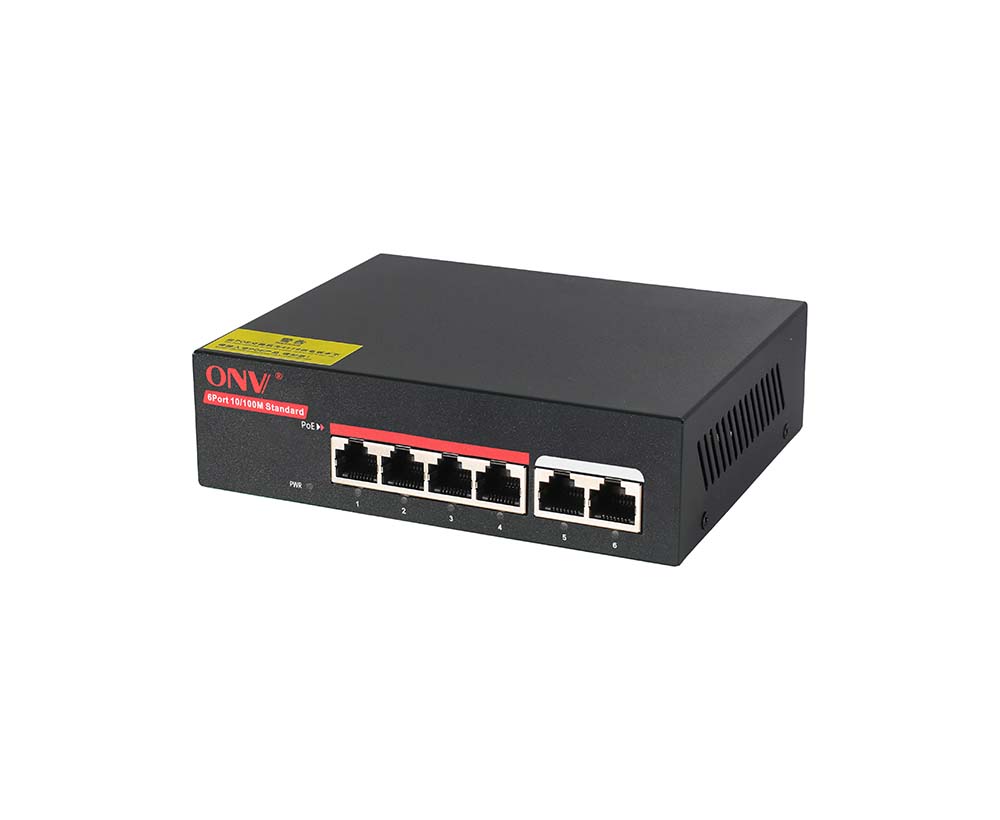

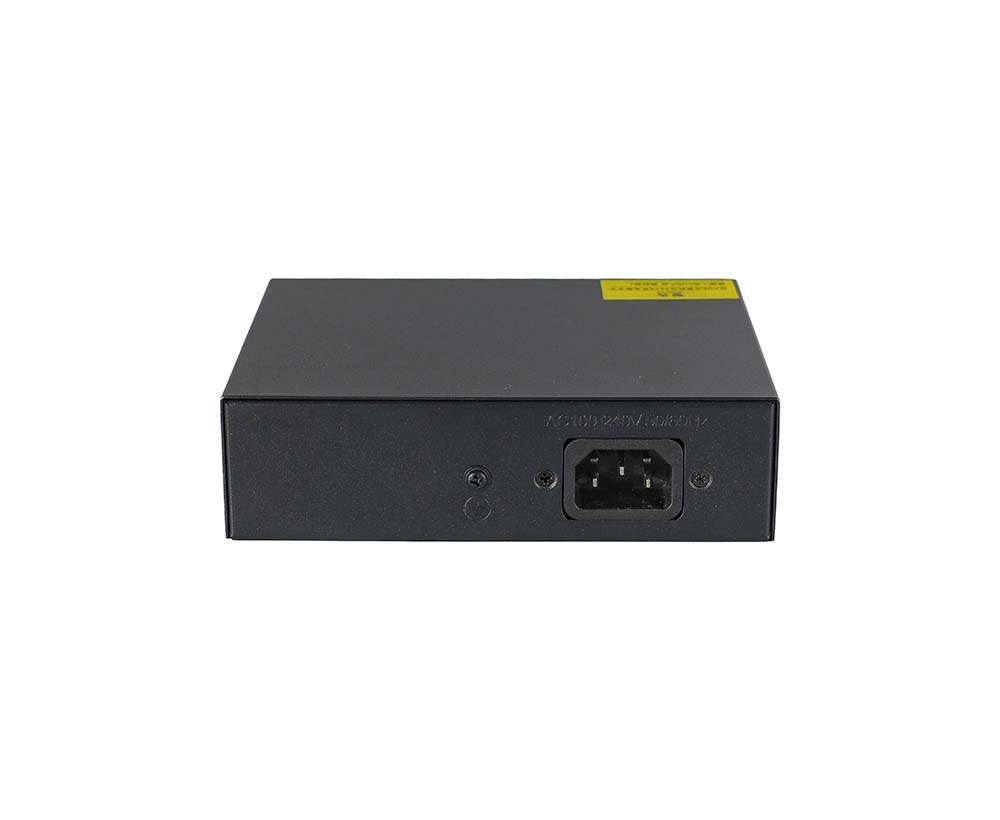

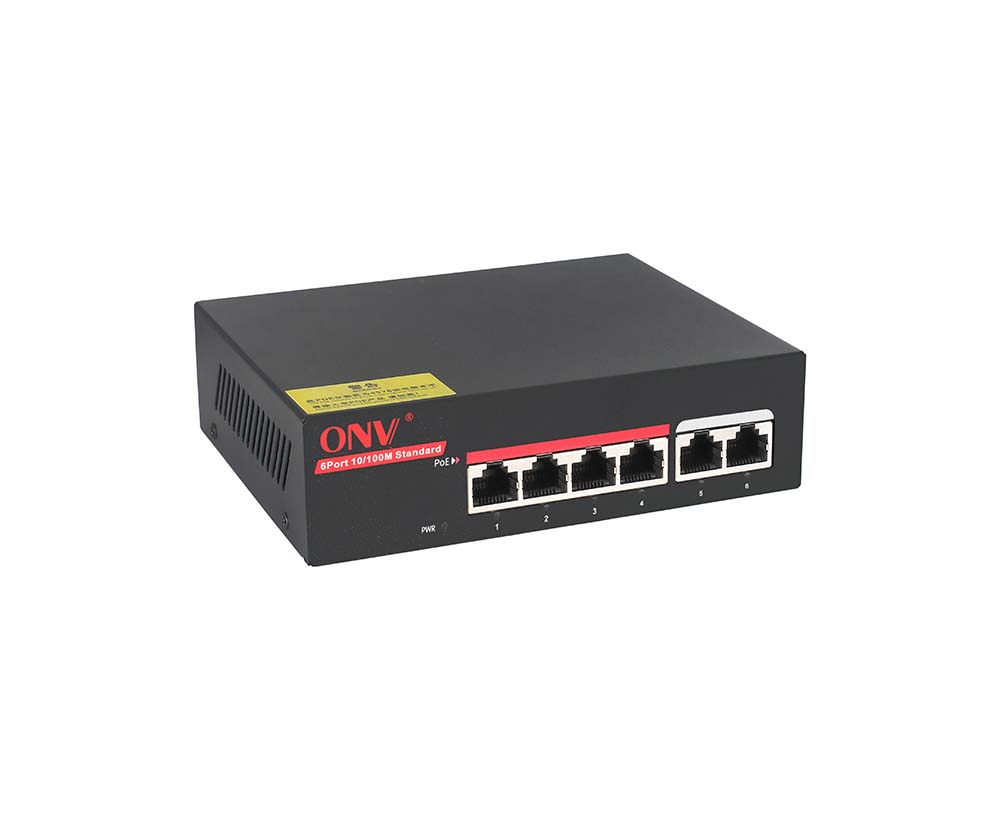

OVERVIEW
The ONV-H2064P is a 10/100M non-standard PoE switch independently developed by ONV. It has 6*10/100M RJ45 ports. Port 1-4 can support 24V non-standard PoE power supply and the single-port PoE power up to 24W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge), or the corresponding non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Provides 6*10/100M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
Smart PoE power supply
◇ 4*10/100Base-TX RJ45 ports support 24V PoE power supply, meeting the power supply needs of security monitoring, wireless coverage, and other scenarios.

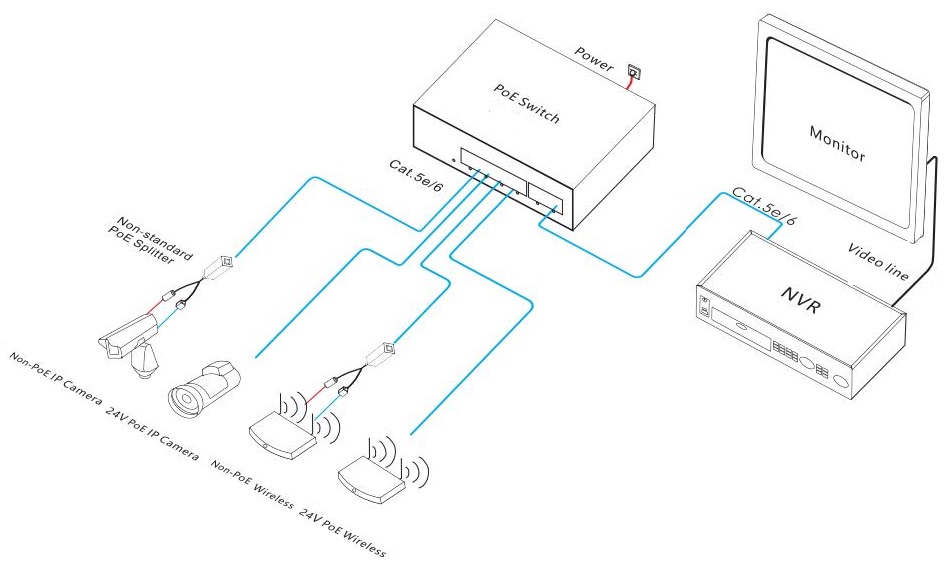

◇ Quickly implement PoE network cable power supply through the switch to directly connect non-standard electrical equipment or the switch and non-standard PoE splitter cable.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR and L/A.
◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

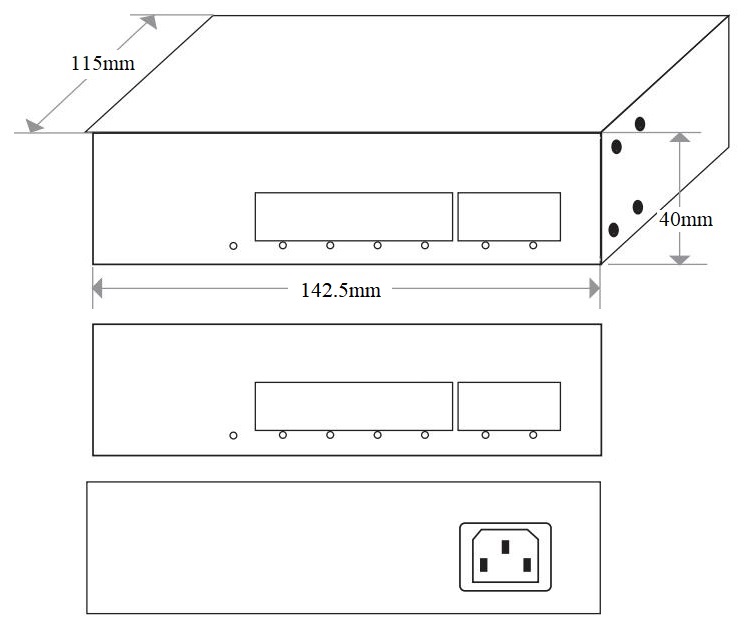

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H2064P |
Unmanaged PoE switch with 4*10/100M RJ45 ports and 2*10/100M uplink RJ45 ports. Port 1-4 can support DC24V PoE output. Built-in power supply. |
60W |
|
Note: The mounting ears are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port 10/100M non-standard PoE switch |
1 |
Set |
|
|
AC Power Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H2064P |
|
Interface Characteristics |
|
|
Fixed Port |
2*10/100Base-TX uplink RJ45 Ports (Data) 4*10/100Base-TX 24V PoE ports (Data /Power) |
|
Ethernet Port |
Port 1- 6 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-TX: Cat5 or later UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
1.2Gbps (non-blocking) |
|
Forwarding Rate@64byte |
0.89Mpps |
|
MAC |
1K |
|
Buffer Memory |
768K |
|
Jumbo Frame |
1536byte |
|
LED Indicator |
Power: PWR (Green), Network: L/A (Green) |
|
PoE& Power Supply |
|
|
PoE Port |
Port 1-4 can support 24V PoE power |
|
Power Supply Pin |
4/5(+), 7/8 (-) |
|
Max Single Port/ Average Power |
24W/15W |
|
Total PWR/ Input Voltage |
60W /(AC100-240V) |
|
Power Consumption |
Standby<5W, Full load<60W |
|
Power Supply |
Built-in power supply, AC100~240V, 50-60Hz, 1.0A |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage Temp/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
142*115*40mm |
|
Net /Gross Weight |
0.55kg/ 0.8kg |
|
Installation |
Desktop, Wall mount |
|
Certification& Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
Warranty |
1 year, lifelong maintenance. |
