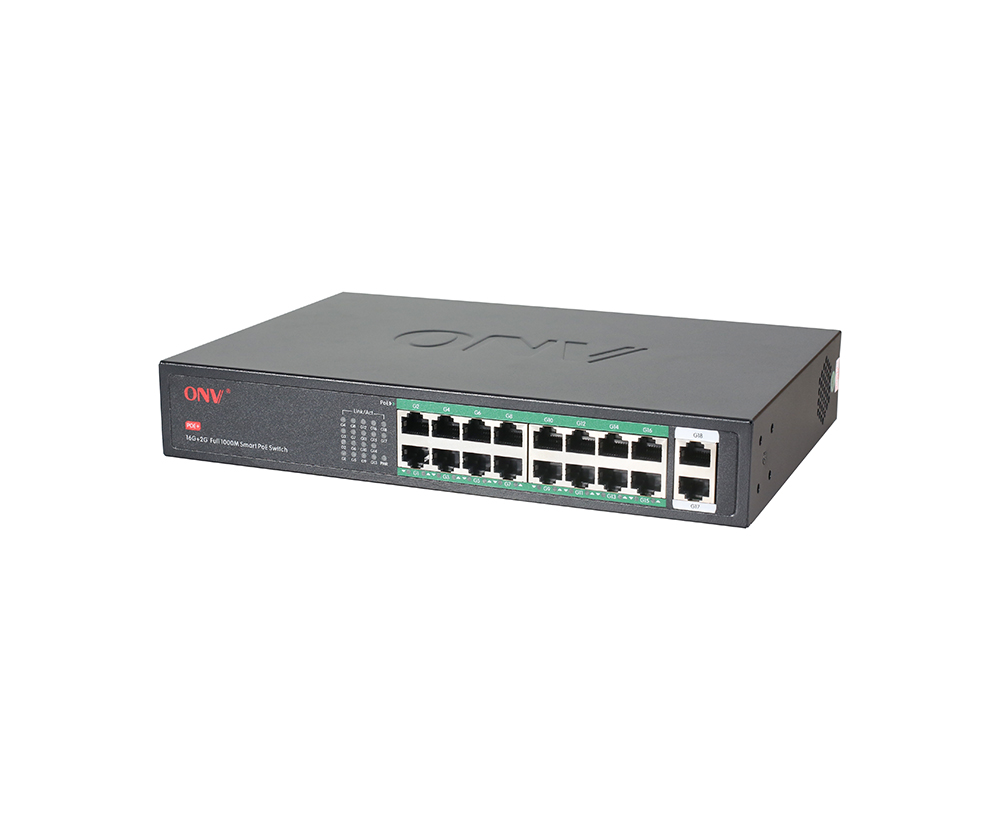

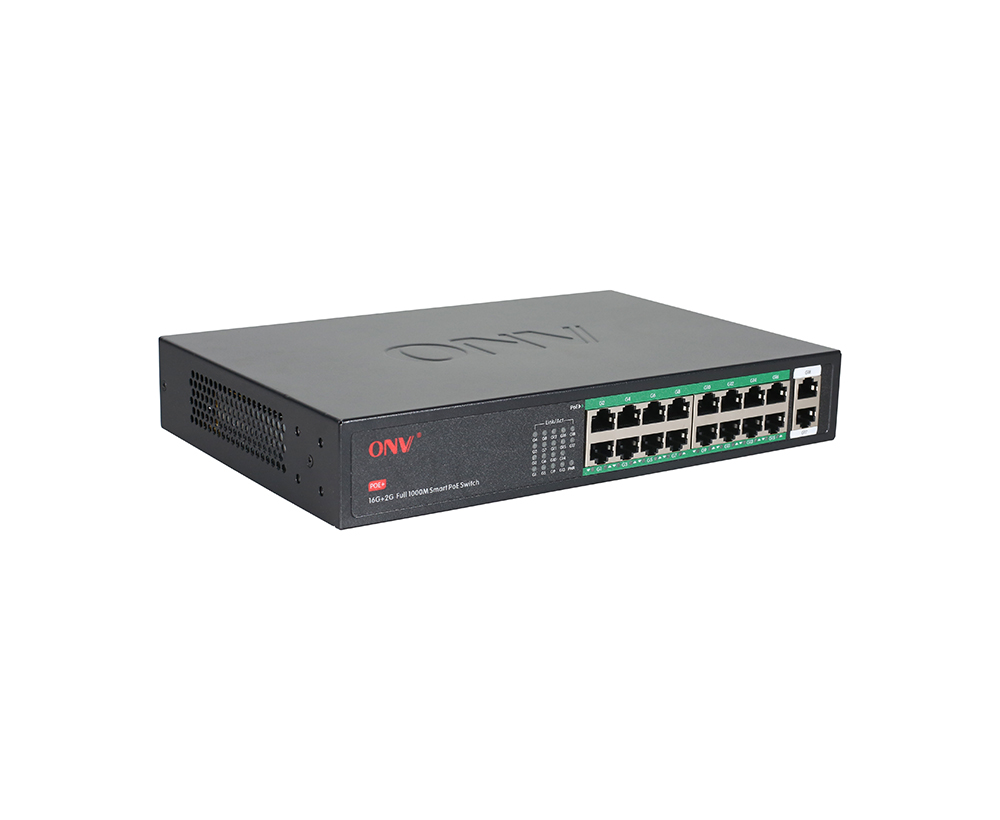

Conmutador PoE Gigabit de 18 puertos

Modelo： ONV-H3016PS

Conmutador PoE no administrado con 18*10/100/1000M RJ45 portsPort 1-16 soporte PoE fuente de alimentación. Fuente de alimentación incorporada de 160W

Quiero hacer una investigación

Información general
Especificación técnica
Aplicación
Documentos
Productos relacionados

OVERVIEW

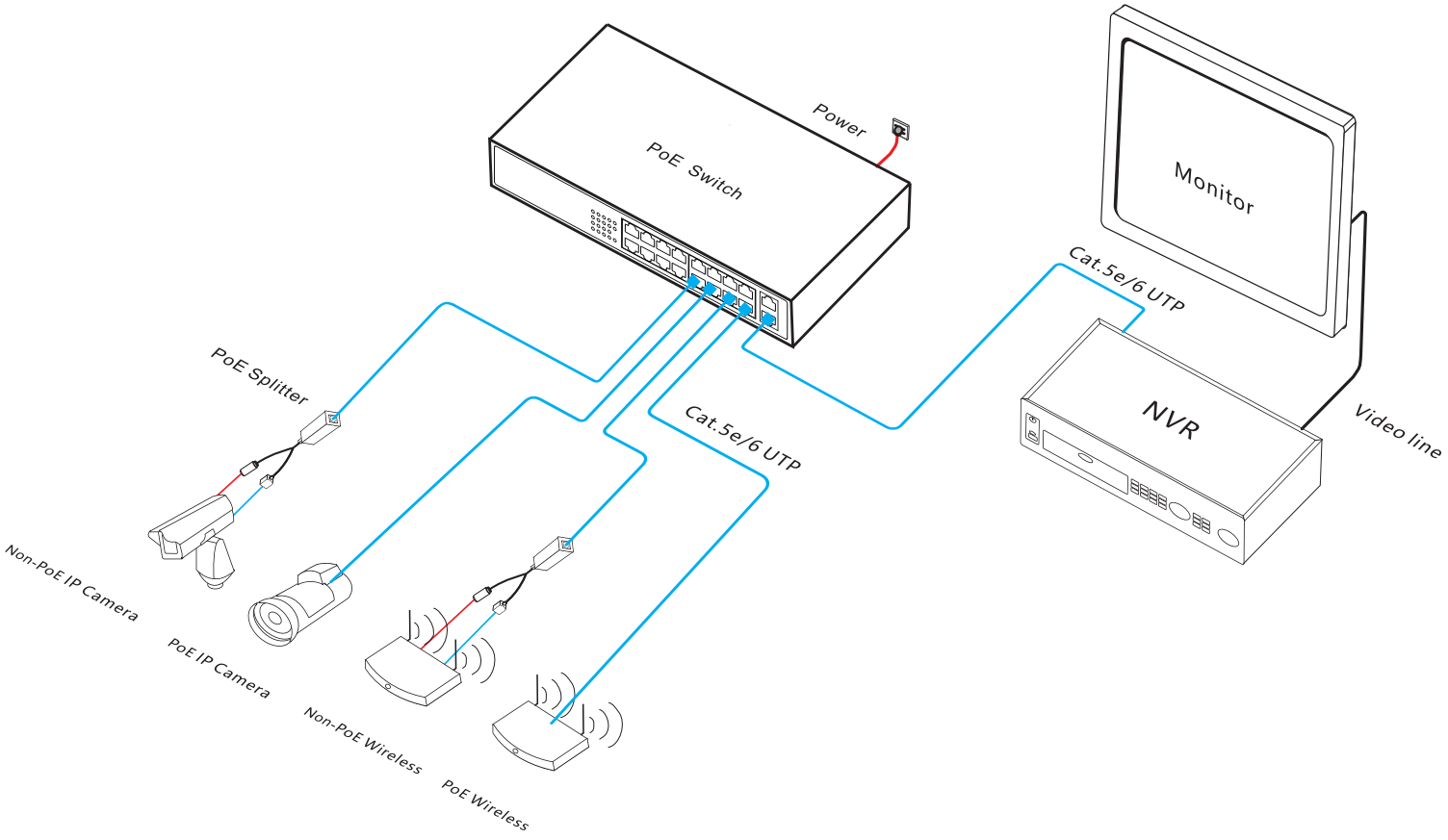

The ONV-H3016PS is a Gigabit PoE switch independently developed by ONV. It has 18*10/100/1000Base-T RJ45 ports. Port 1-16 can support PoE+ power supply and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

Gigabit port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Provide Gigabit RJ45 ports and dual RJ45 ports uplink for flexible networking and meets the networking requirements of various scenarios.

Smart PoE power supply

◇ 16*10/100/1000Base-T PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

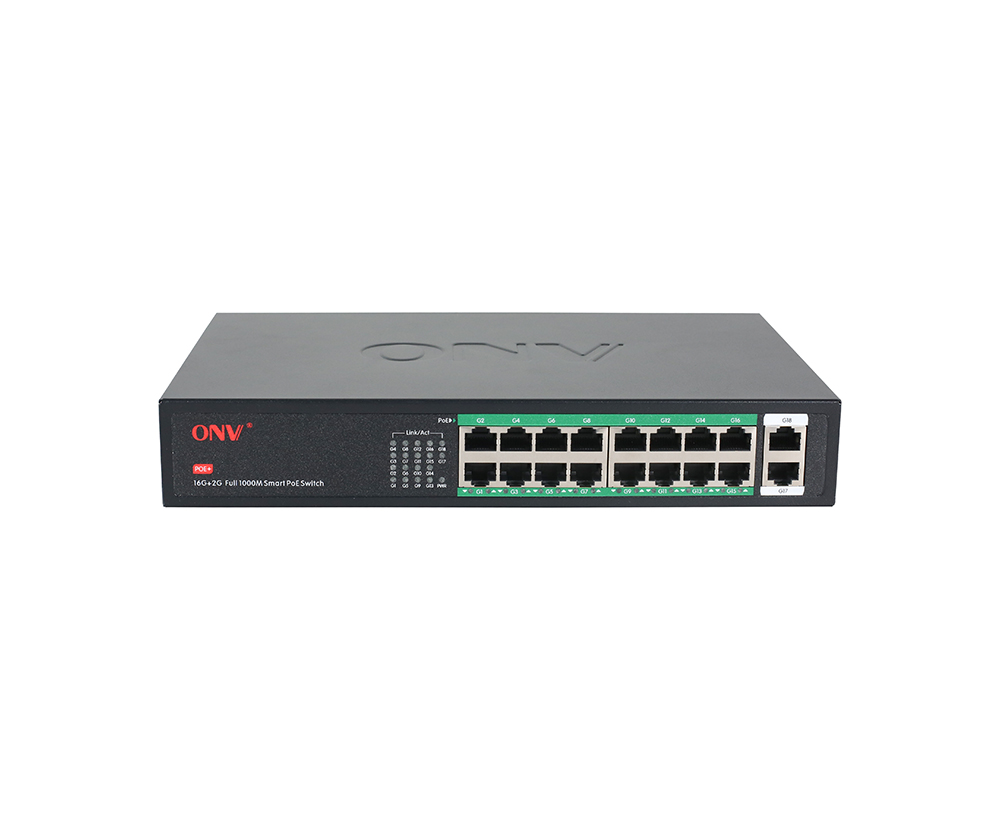

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.

◇ Low power consumption, metal housing, and excellent heat dissipation ensure the stable operation of the switch.

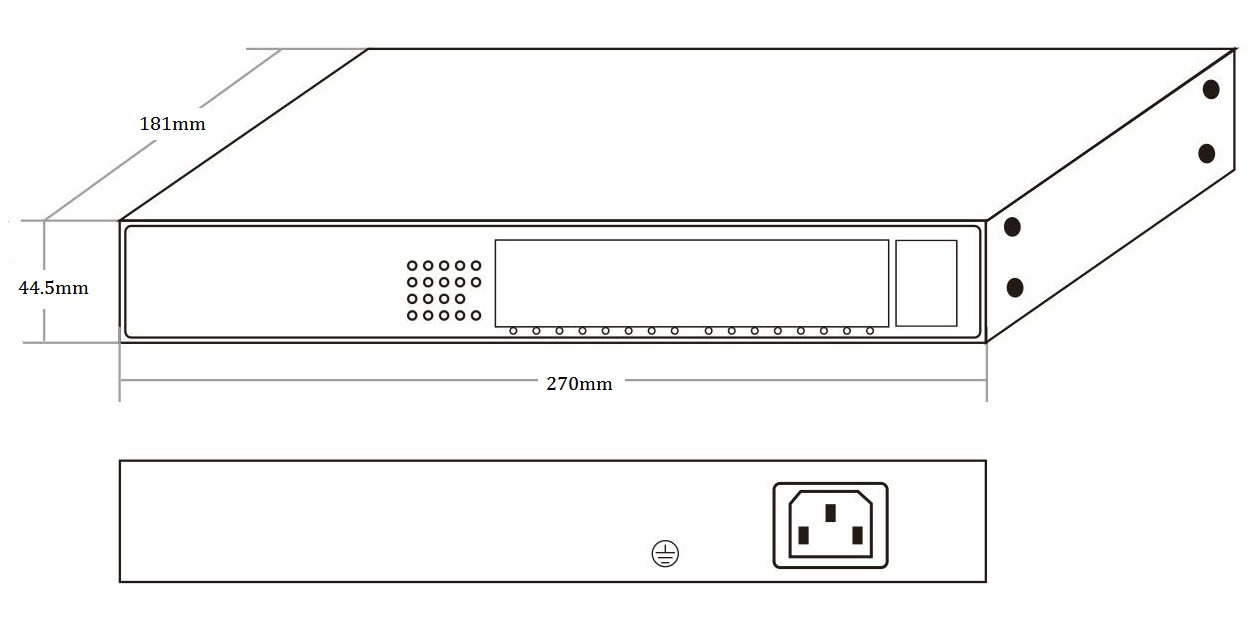

DIMENSION

ORDERING INFORMATION

Model	Description	Built-in Power Supply
ONV-H3016PS	Unmanaged PoE switch with 18*10/100/1000M RJ45 ports. Port 1-16 can support PoE+ power supply. Built-in power supply	160W
ONV-H3016PS-250		250W

PACKING LIST

Packing List	Content	Qty	Unit
	18-port Gigabit PoE switch	1	Set
	AC Power Line	1	PC
	Hardware Mounting Kit	1	Set
	User Guide	1	PC
	Warranty Card and Certificate of Conformity	1	PC

TECHNICAL SPECIFICATION

Model	ONV-H3016PS	ONV-H3016PS-250
Interface Characteristics
Fixed Port	1610/100/1000Base-T PoE ports (Data/Power) 210/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port	Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	36Gbps (non-blocking)
Forwarding Rate@64byte	26.78Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9.2k
LED Indicator	Power: PWR (Green), Network: Link (Green), PoE: PoE (Green)
PoE&Power Supply
PoE Port	Port 1-16
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, PoE+
Total PWR/ Input Voltage	160W/ (AC100-240V)	250W/ (AC100-240V)
Power Consumption	Standby <13W, Full load <160W	Standby <13W, Full load <250W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 3.0A	Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation Temp/ Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	27018144.5mm
Net /Gross Weight	1.4kg/ 1.9kg	1.6kg/ 2.0kg
Installation	Desktop, 1U/19 inch cabinet
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
