OVERVIEW

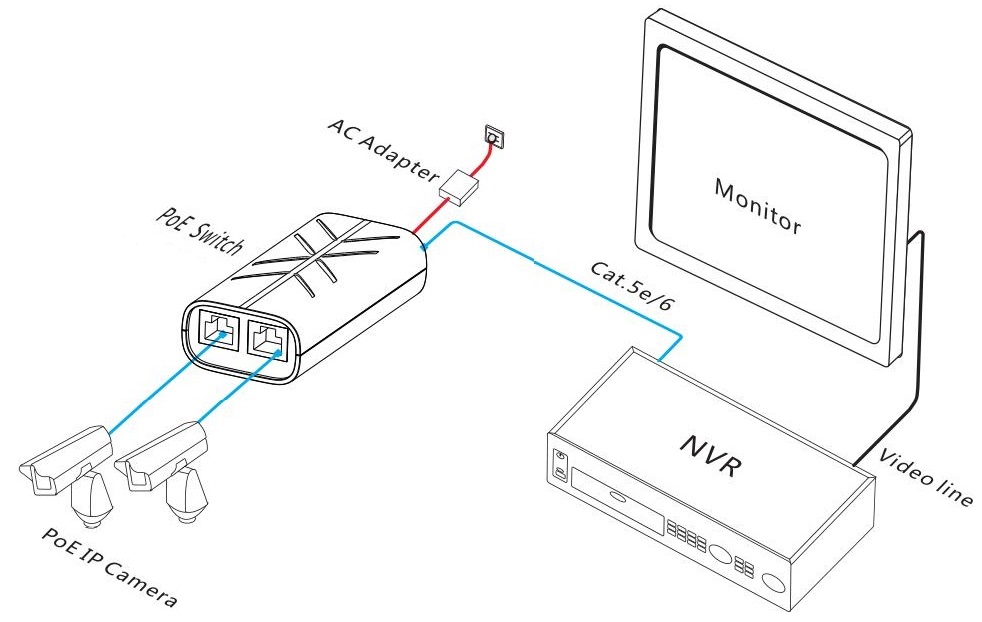

The ONV-POE31032PL is a 10/100M PoE switch independently developed by ONV. It has 3*10/100M RJ45 ports. Port 1-2 can support IEEE 802.3 af/at PoE standard, and single-port PoE power reaches 30W. Adding a 10M/250m functional switch to the PoE power port breaks through the twisted-pair transmission limit of 100 meters, effectively solving network transmission within 200 meters. A PoE power supply device can automatically detect and recognize the power-receiving equipment that meets the standard and supplies power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Plug and play, full-line speed forwarding
◇ IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
◇ The port supports non-blocking line-speed forwarding and transmission for smoother transmission.
◇ Full-line speed, high-speed forwarding, convenient and flexible networking, meeting the networking needs of various scenarios.
Intelligent PoE power supply
◇ Comply with IEEE 802.3 af/at PoE power supply standard, automatically identify PoE equipment for power supply.
◇ 2*10/100Base-TX RJ45 ports support PoE power to meet the power supply needs of security monitoring, conference call systems, wireless coverage, and other scenarios.
◇ PoE ports support priority mechanism. When the remaining power is insufficient, priority is given to ensuring the power supply of high-priority ports to avoid equipment overload.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.

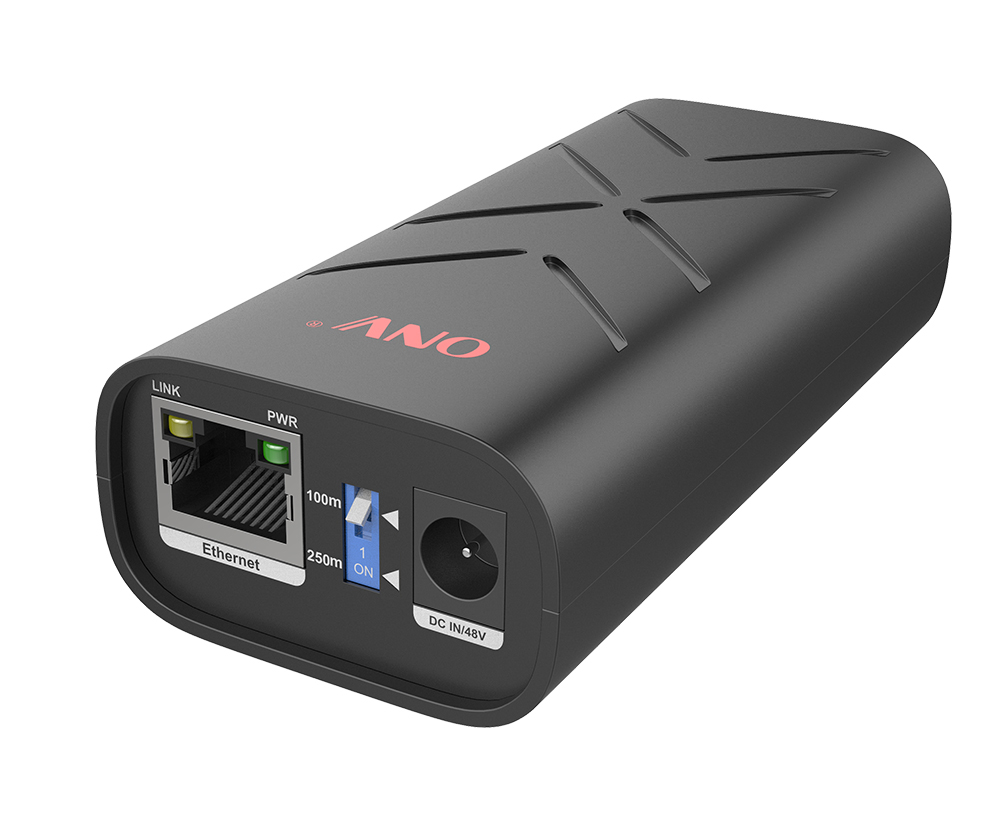

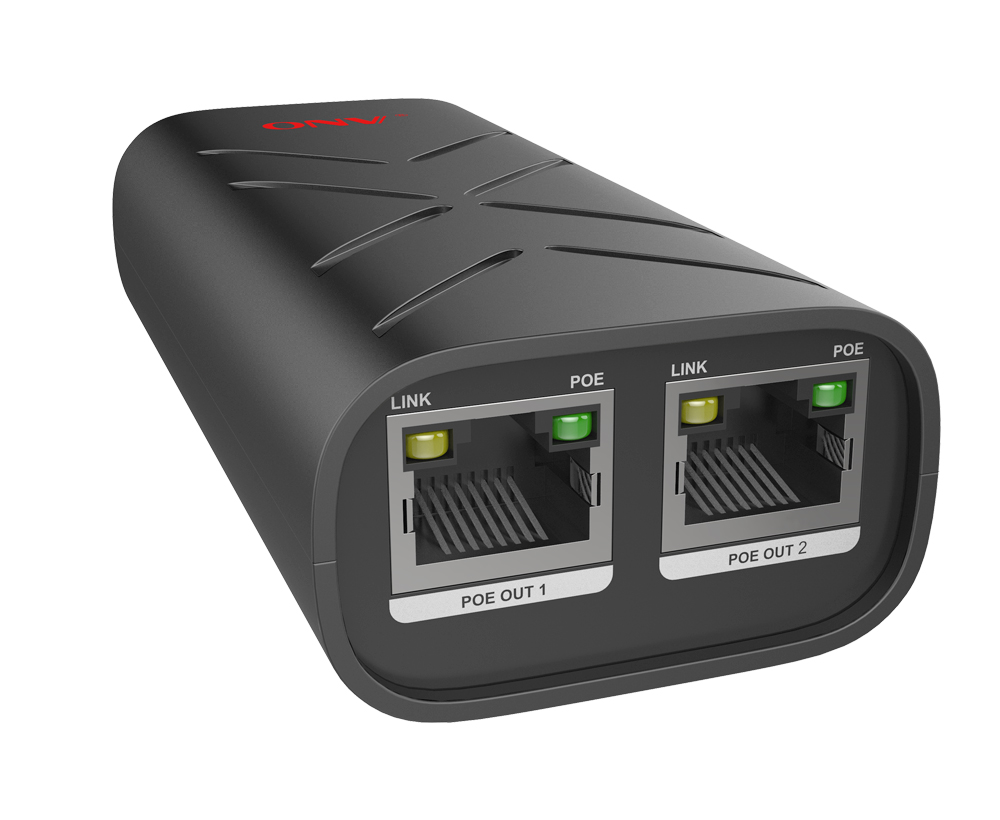

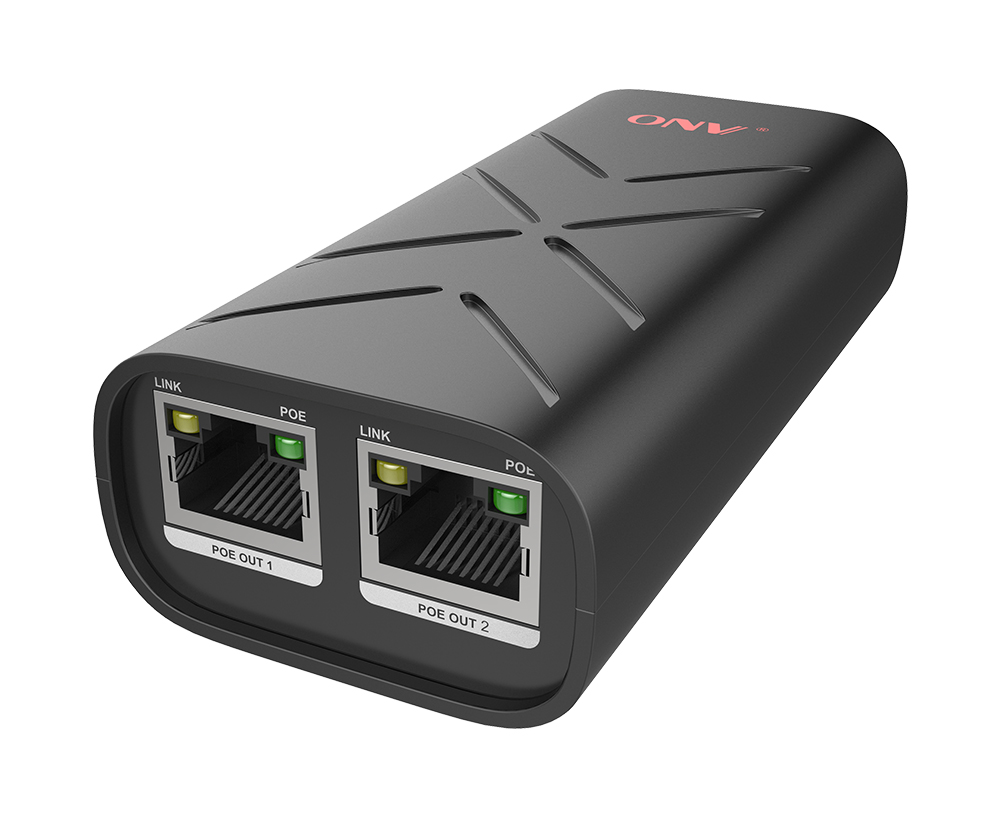

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

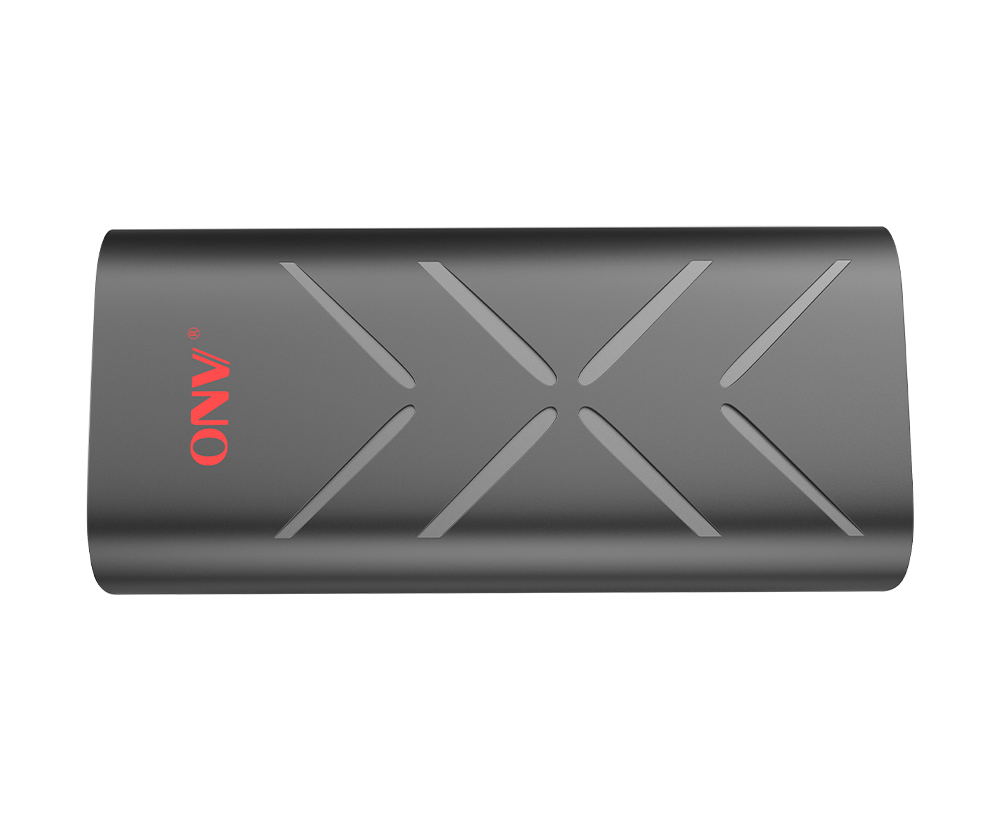

◇ Low power consumption, No fan, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.

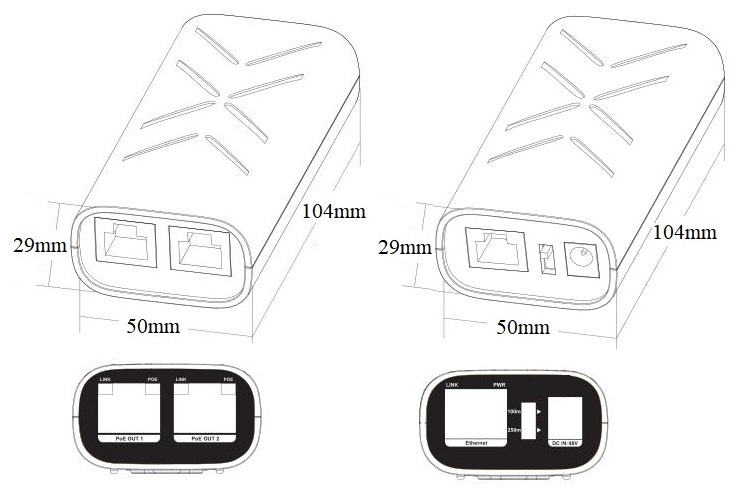

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Power Adapter |
|
ONV-POE31032PL |
Unmanaged PoE switch with 2*10/100M PoE ports and 1*10/100M uplink RJ45 port. Port 1-2 can support IEEE 802.3 af/at PoE standard. External power adapter. |
48W |
|
ONV-POE31032PL-at |
65W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
3-port 10/100M PoE switch |
1 |
SET |
|
|
AC Power Cable and Power Adapter |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE31032PL |
ONV-POE31032PL-at |
|
Interface Characteristics |
||
|
Fixed Port |
2*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink RJ45 port (Data) |
|
|
Ethernet Port |
Port 1-3 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
|

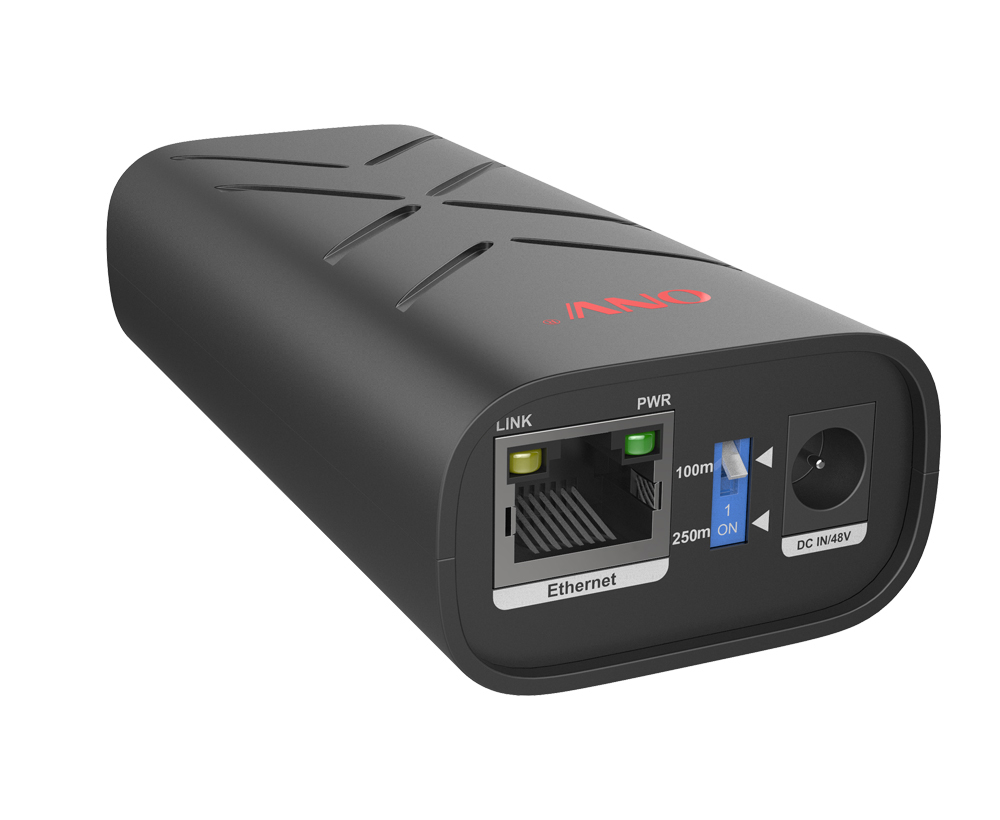

Functional Switch
|
100m: 100m transmission |
|
|
250m: 250m transmission, default off, enable on |
||
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
1.0Gbps (Non-blocking) |
|
|
Forwarding Rate@64byte |
0.45Mbps |
|
|
MAC |
1K |
|
|
Buffer Memory |
512K |
|
|
Jumbo Frame |
1536byte |
|
|
LED Indicator |
Power: PWR (Green), Data: Link (Yellow), POE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 2 |
|
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
|
Total PWR / Input Voltage |
48W/ (DC52V) |
65W/ (DC52V) |
|
Power Consumption |
Standby<3W, Full load<48W |
Standby<4W, Full load<65W |
|
Input Voltage and Interface |
DC48-57V, DC5521 power terminal connection |
|
|
Power Supply |
External power adapter, AC100-240V 50-60Hz 1.0A |
External power adapter, AC100-240V 50-60Hz 1.1A |
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40°C~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
104*50*29mm |
|
|
Net /Gross Weight |
<0.08kg /<0.5kg |
<0.09kg /<0.65kg |
|
Installation |
Desktop, wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
3 years, lifelong maintenance. |
|
