Conmutador PoE Gigabit uplink de 19 puertos

Modelo： ONV-H1016PFD-250

El interruptor Unmanaged del PoE con los puertos RJ45 del 16*10/100M y la base-T de los 2*10/100/1000M uplink los puertos RJ45 y 1 * 1000Base-X uplink el puerto de la fibra de SFP. El puerto 1-16 puede apoyar la fuente de alimentación del PoE. La función de vigilancia PoE está activada por defecto. Cambiar el interruptor funcional (250m), Puerto 9-16 tasa es 10m/250m transmisión y fuente de alimentación incorporada de 250W.

Quiero hacer una investigación

Información general
Especificación técnica
Aplicación
Documentos
Productos relacionados

OVERVIEW

The ONV-H1016PFD-250 is a smart PoE fiber switch independently developed by ONV. It has 16*10/100Base-TX RJ45 ports and 2*10/100/1000Base-T uplink RJ45 ports and 1*1000Base-X uplink SFP fiber port. Port 1-16 can support PoE+ power supply and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100M access, Gigabit optical port uplink

◇ Support non-blocking wire-speed forwarding for smoother transmission.

◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

◇ Provide Ethernet ports and Gigabit SFP port uplink for flexible networking and meets the networking requirements of various scenarios.

Smart PoE power supply

◇ 16*10/100Base-TX RJ45 ports support PoE power to meet the needs of PoE power in various scenarios in the security field.

◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.

Stable and reliable, easy to use

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ Low power consumption, no fan, galvanized steel casing, excellent heat dissipation to ensure the stable operation of the switch.

Innovative function

◇ Function switch (100/250m) switch to ON position (default off), the port 9 to 16 rate is 10M, and the PoE watchdog function is turned on at the same time to monitor and automatically restart the communication failure PoE port. Using the existing twisted pair can break through the 100 meters transmission limit, and the transmission distance can be up to 250 meters. At the same time, it can solve the problem of poor transmission caused by aging lines.

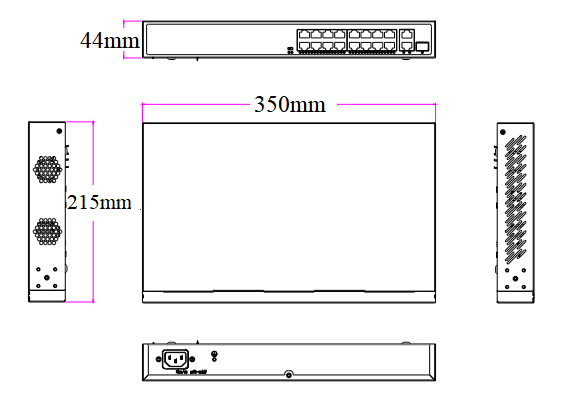

DIMENSION

ORDERING INFORMATION

Model	Description	Built-in Power Supply
ONV-H1016PFD	Unmanaged PoE switch with 1610/100M RJ45 ports and 210/100/1000M Base-T uplink RJ45 ports and 1*1000Base-X uplink SFP fiber port. Port 1-16 can support PoE+ power supply. PoE watchdog function is turned on by default. switch the functional switch (250m), port 9-16 rate is 10M/250m transmission and built-in power supply.	52V/160W
ONV-H1024PFD-250		52V/250W

PACKING LIST

Packing List	Content	Qty	Unit
	19-port Gigabit uplink PoE switch	1	SET
	AC Power Line	1	PC
	User Guide	1	PC
	Warranty Card	1	PC

TECHNICAL SPECIFICATION

Model	ONV-H1016PFD	ONV-H1016PFD-250
Interface Characteristics
Fixed Port	11000Base-X uplink SFP fiber port (Data) 1610/100Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port	Port 1-16 support 10/100Base-T(X) and port 17-18/ 25-26 support 1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Functional Switch	Function switch (100/250m) Default: off, use:on, After opening, port 9-16 support 10M/250m transmission and PoE watchdog function
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	9.2Gbps (Non-blocking)
Forwarding Rate@64byte	6.84Mpps
MAC	2K
Buffer Memory	2.75M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (Green), Network: Link (Green) PoE: PoE (Red), Functional switch: 100/250m (Green)
PoE & Power Supply
PoE Port	Port 1-16
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, PoE+
Total PWR / Input Voltage	160W/ (AC100-240V)	250W/ (AC100-240V)
Power Consumption	Standby <5W, Full load <160W	Standby <8W, Full load <250W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 3.0A	Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+80°C, 5%~95% RH Non condensing
Dimension (LWH)	35021544mm
Net /Gross Weight	1.65kg / 2.2kg	1.9kg / 2.45kg
Installation	Desktop, Rack mounted
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
