Conmutador PoE no estándar de 19 puertos Gigabit uplink-Conmutador PoE

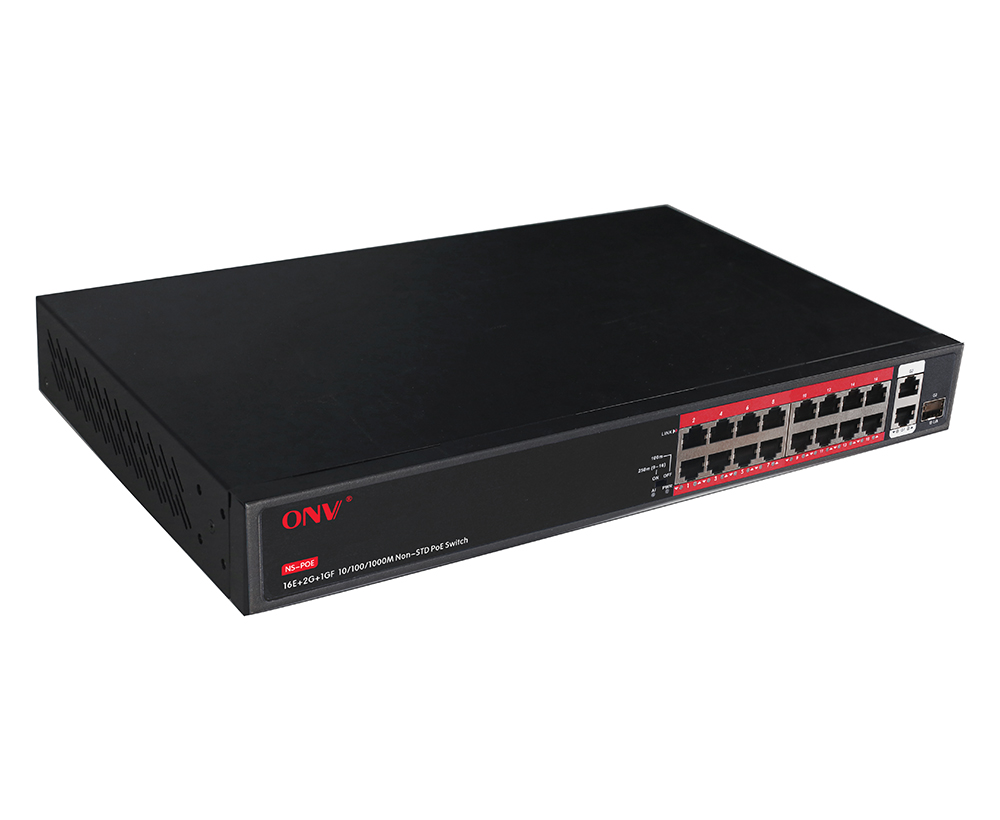

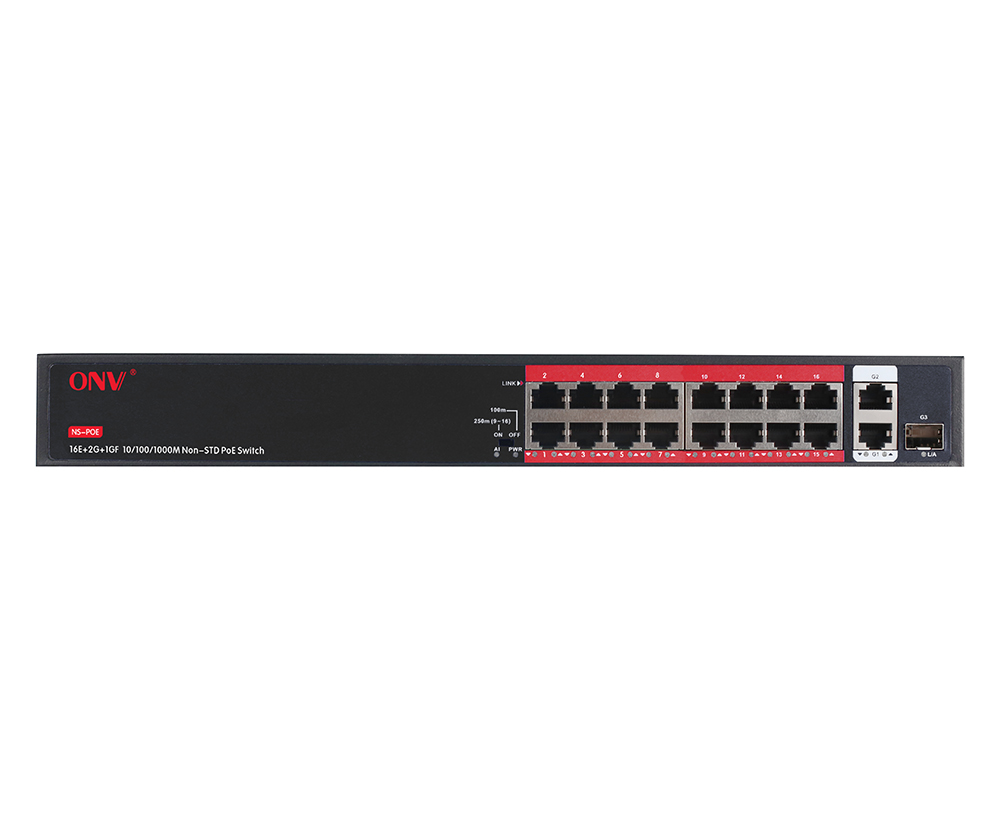

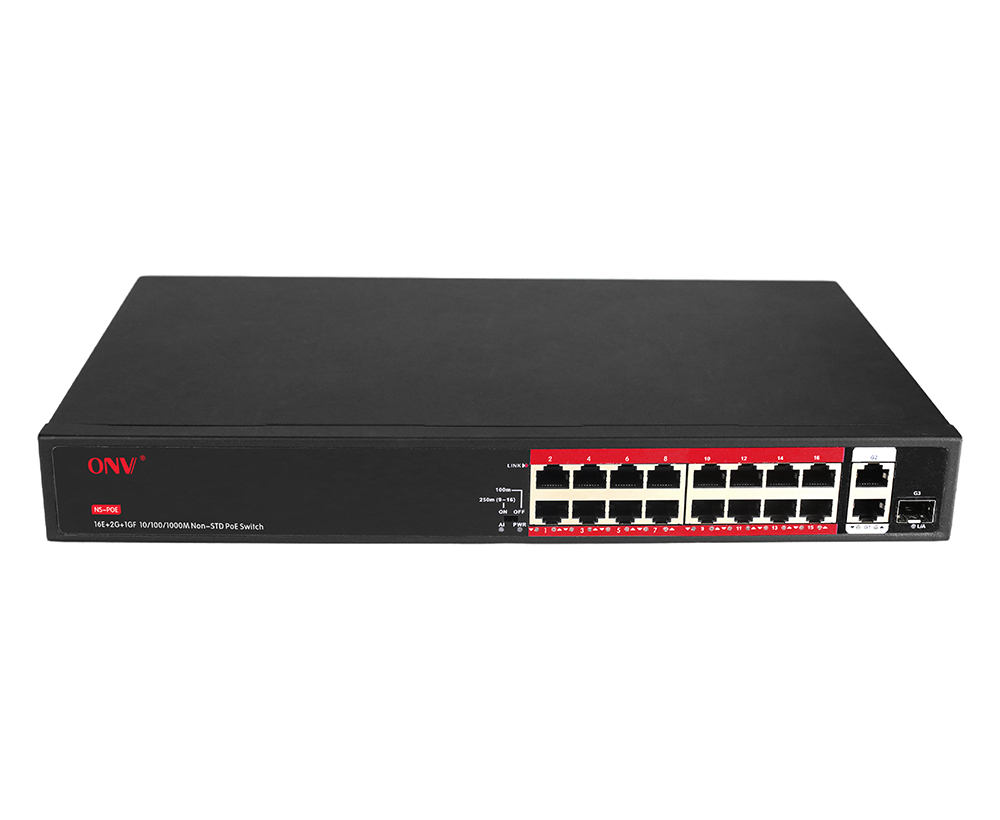

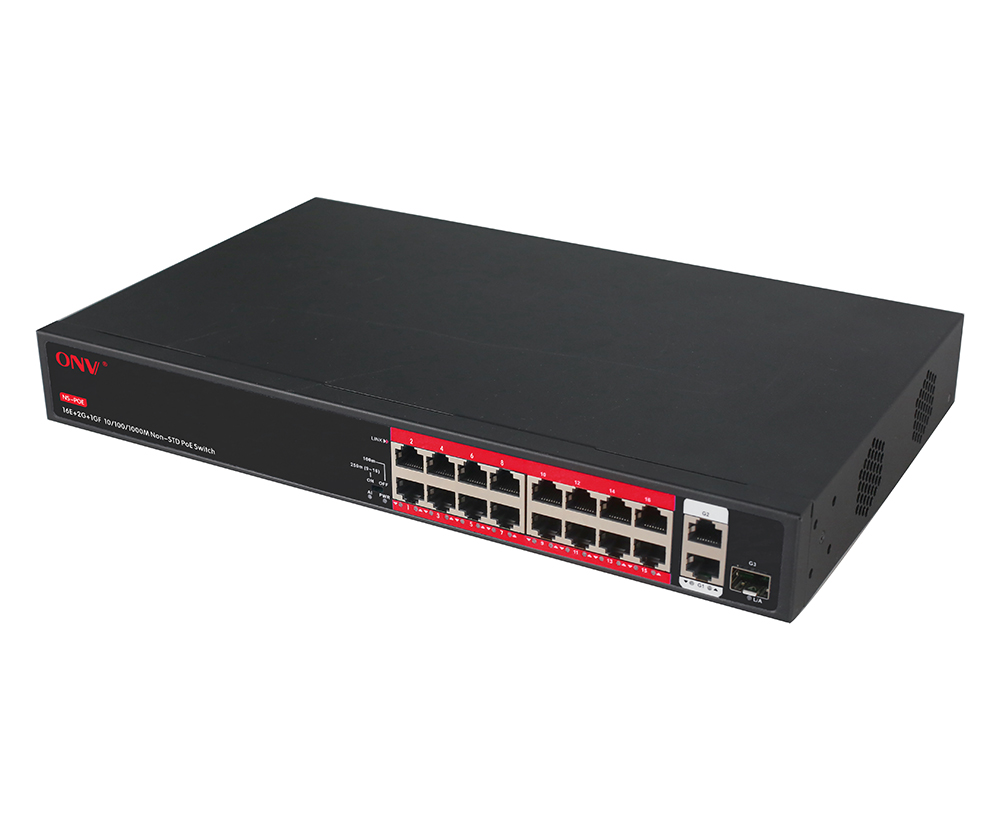

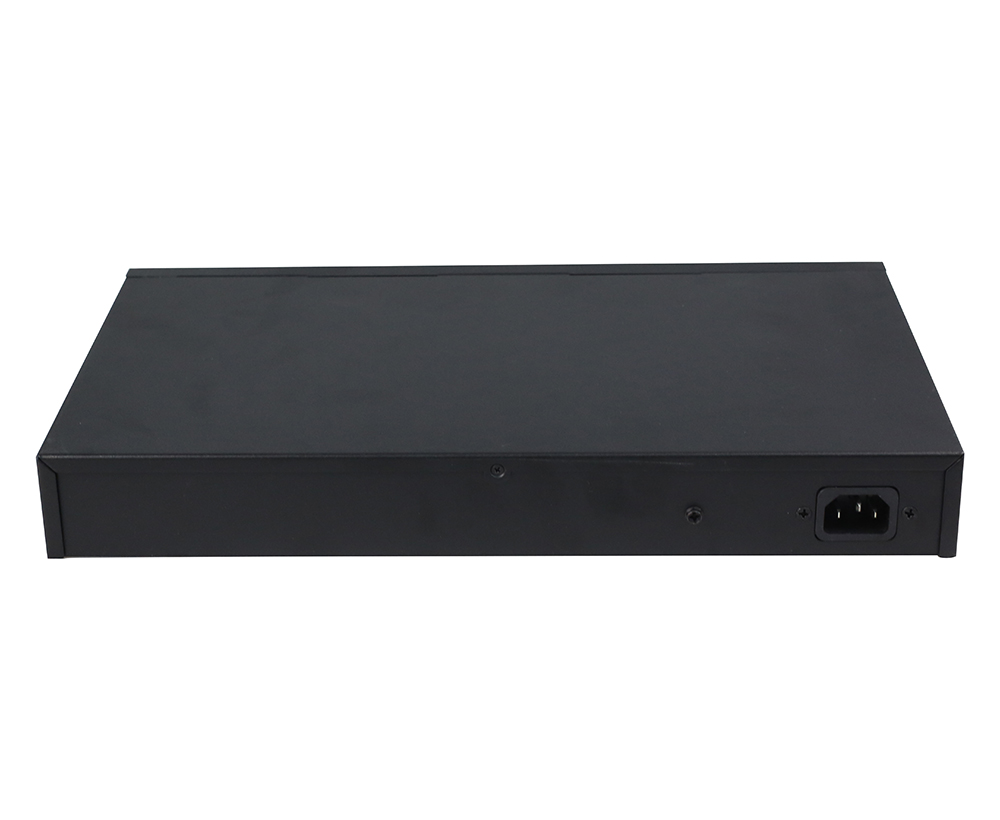

Conmutador PoE no estándar de 19 puertos Gigabit uplink

Modelo： ONV-H2016PFG-YS

Conmutador PoE no administrado con puertos RJ45 de 16*10/100M y puertos RJ45 de enlace ascendente de 2*10/100/1000M y puerto de fibra SFP de enlace ascendente de 1*1000M. Puerto 1-16 soporte 24V fuente de alimentación PoE no estándar. Puerto 9-16 puede soportar 10M/250 metros de transmisión cuando el interruptor funcional está en 250 m. Fuente de alimentación incorporada de 250W.

Quiero hacer una investigación

Información general
Especificación técnica
Aplicación
Documentos
Productos relacionados

OVERVIEW

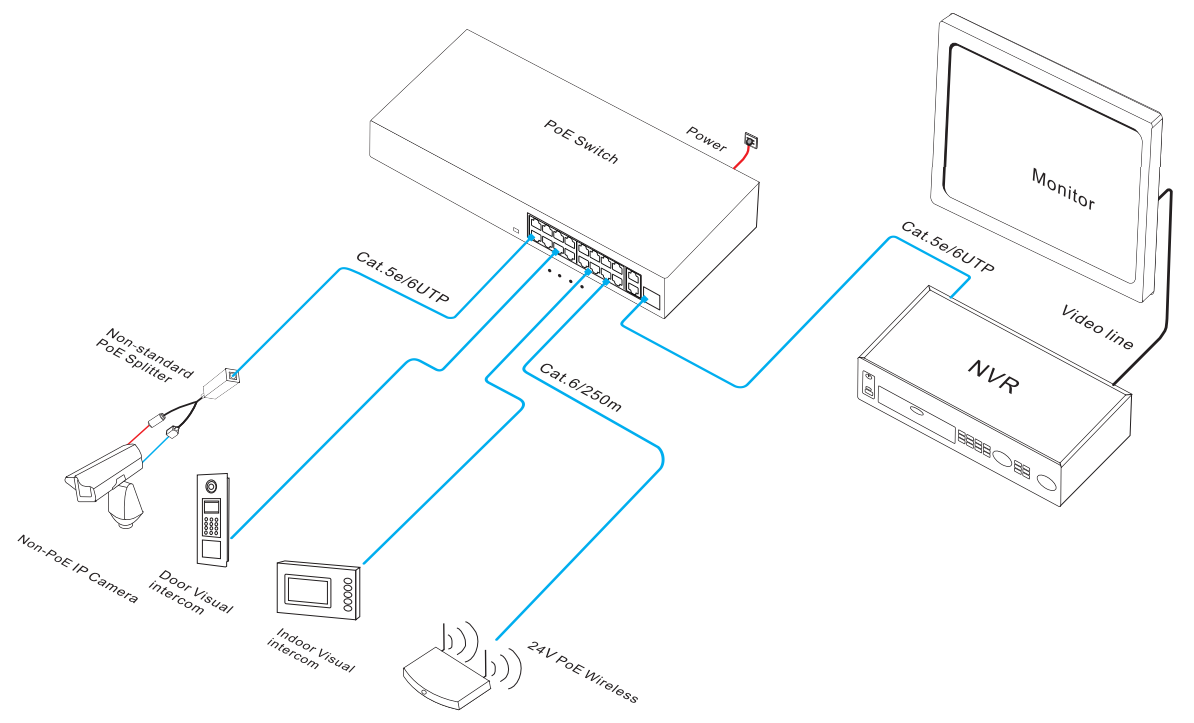

The ONV-H2016PFG-YS is a gigabit uplink non-standard PoE fiber switch independently developed by ONV. It has 16*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-16 can support 24V non-standard PoE power supply and single-port PoE power up to 18W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge, building visual intercom, etc.), or the non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100M access, gigabit uplink RJ45 and SFP port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Provides 10/100M RJ45 port and Gigabit RJ45 and SFP port, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

Smart PoE power supply

◇ The PoE port has a short-circuit protection function to prevent accidental contact and short-circuit burns.

◇ Quickly implement PoE network cable power supply through the switch to directly connect non-standard electrical equipment or the switch and non-standard PoE splitter cable.

◇ 16*10/100Base-TX RJ45 ports can support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ (8 ports in a group, each group has 4 ports at the end) The 8 ports have a delayed start function, which can avoid power overload protection caused by overload at the moment of power-on.

Stable and reliable, easy to use

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly pane can show the device status through the LED indicator of PWR and PoE.

◇ Low power consumption, galvanized steel casing, and excellent heat dissipation ensure the stable operation of the switch.

◇ Long-distance mode (250m): Turn the switch to ON (default off), and the rate of ports 9-16 is reduced to 10M/250 meters it can also solve the problem of poor transmission caused by aging lines.

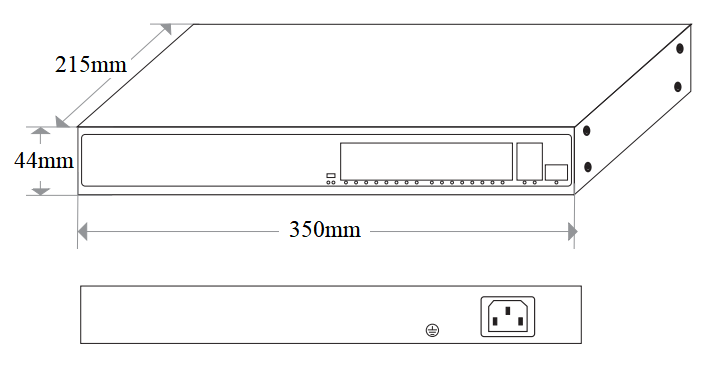

DIMENSION

ORDERING INFORMATION

Model	Description	Built-in Power Supply
ONV-H2016PFG-YS	Unmanaged PoE switch with 1610/100M RJ45 ports and 210/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-16 support 24V non-standard PoE+ power supply. Port 9-16 can support 10M/250 meters transmission when the functional switch is on 250m.	24V/250W
ONV-H2024PFG-YS	Unmanaged PoE switch with 2410/100M RJ45 ports and 210/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-24 support 24V non-standard PoE+ power supply. Port 17-24 can support 10M/250 meters transmission when the functional switch is on 250m.	24V/250W
Note: The optical module is not included and needs to be purchased.

PACKING LIST

Packing List	Content	Qty	Unit
	19-port gigabit uplink non-standard PoE fiber switch	1	PC
	AC Power Cable	1	PC
	User Guide	1	PC
	Warranty Card	1	PC

OPTICAL MODULE

Product	Model	Description	Unit
1.25G Optica Module	2630	SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging.	PC
	2632	SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging.	PC
	2612-T	SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging.	PC
	2613-R	SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging.	PC
	2612-T-SC	SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging.	PC
	2613-R-SC	SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging.	PC

TECHNICAL SPECIFICATION

Model	ONV-H2016PFG-YS	ONV-H2024PFG-YS
Interface Characteristics
Fixed Port	1610/100Base-TX PoE ports (Data/ Power) 210/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP fiber port (Data)	2410/100Base-TX PoE ports (Data/ Power) 210/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP fiber port (Data)
Ethernet Port	Port 1-16/ 1-24 can support 10/100Base-T(X) and port 17-18/ 25-26 can support 100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-TX : Cat5 or later UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T :Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC/SC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Functional Switch (100m/250m)	Port 9-16/ 17-24 can support 10M/250 meters transmission when the functional switch is on 250m.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	9.2Gbps (Non-blocking)	10.8Gbps (Non-blocking)
Forwarding Rate@64byte	6.84Mpps	8.04Mpps
MAC	2K
Buffer Memory	2.75M
Jumbo Frame	9216B
LED Indicator	Power: PWR (Green), Network: Link (Green), PoE: PoE(Red), Fiber port: L/A (Green), Functional switch: 100m/250m (Green)
PoE & Power Supply
PoE Port	Port 1-16	Port 1-24
Power Supply Pin	4/5(+) 7/8(-)
Max Single Port PoE Power	18W, non-standard PoE+
Total PWR / Input Voltage	250W /(AC100-240V)
Power Consumption	Standby<5W, Full Load<250W	Standby<8W, Full Load<250W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation TEMP / Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40°C~+80°C, 5%~95% RH Non condensing
Dimension (LWH)	35021544mm
Net /Gross Weight	1.9kg / 2.45kg
Installation	Desktop, Rack mounted
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
