OVERVIEW

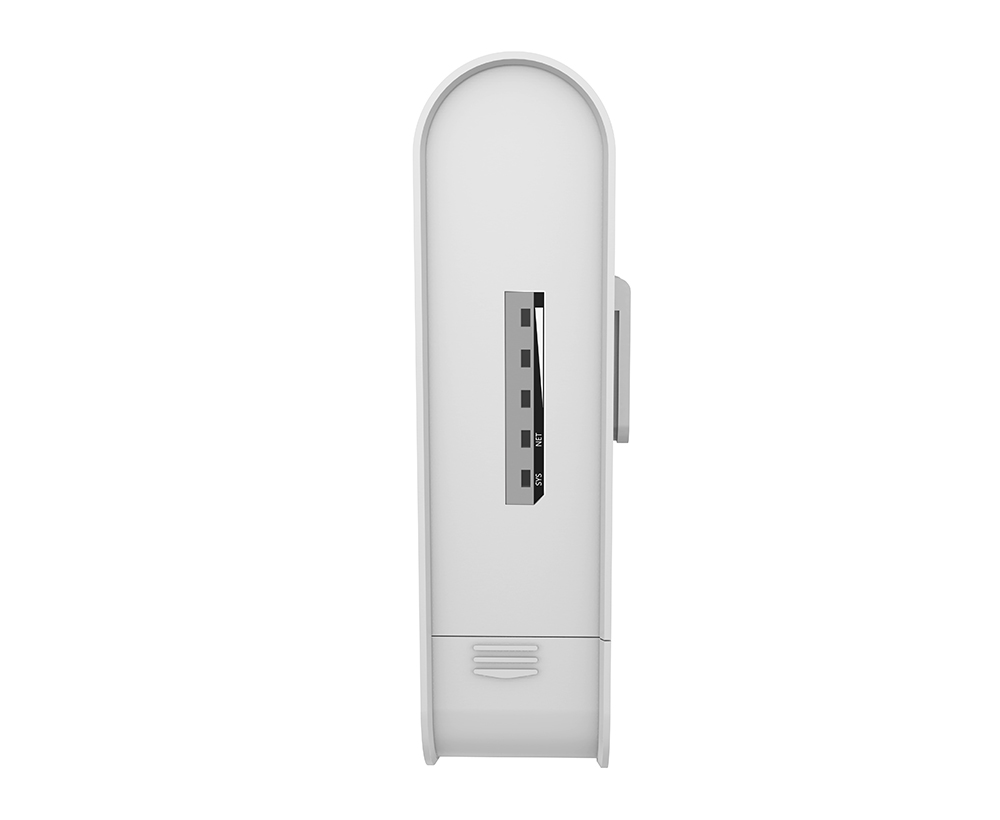

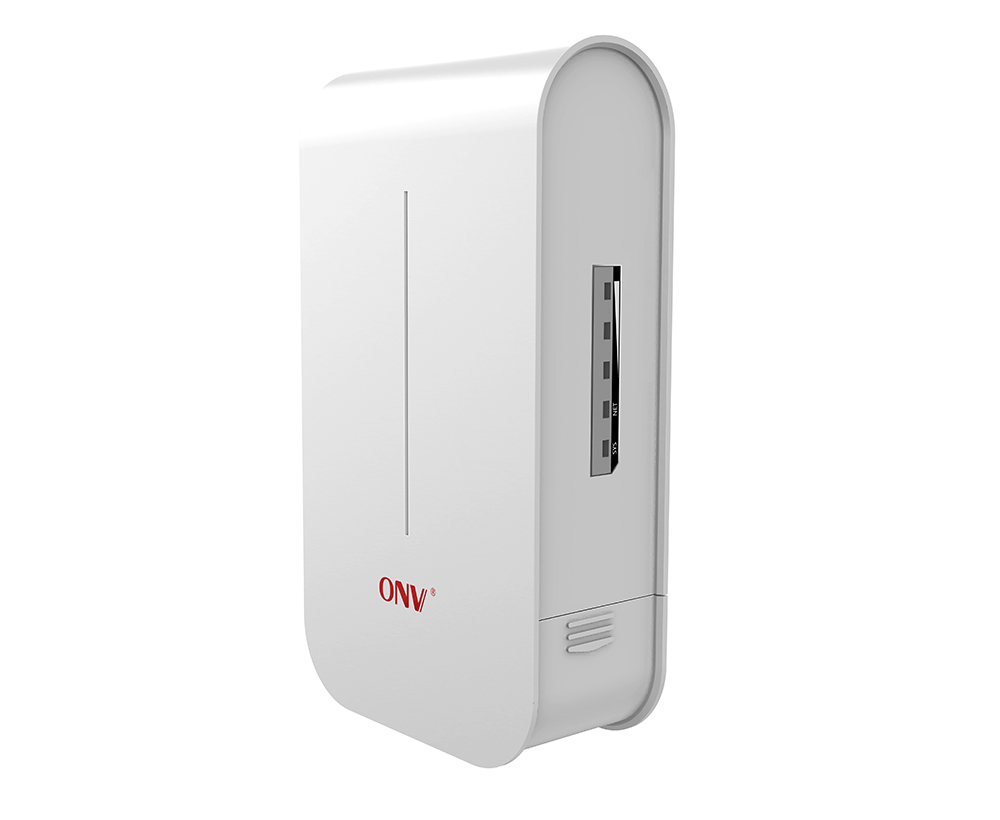

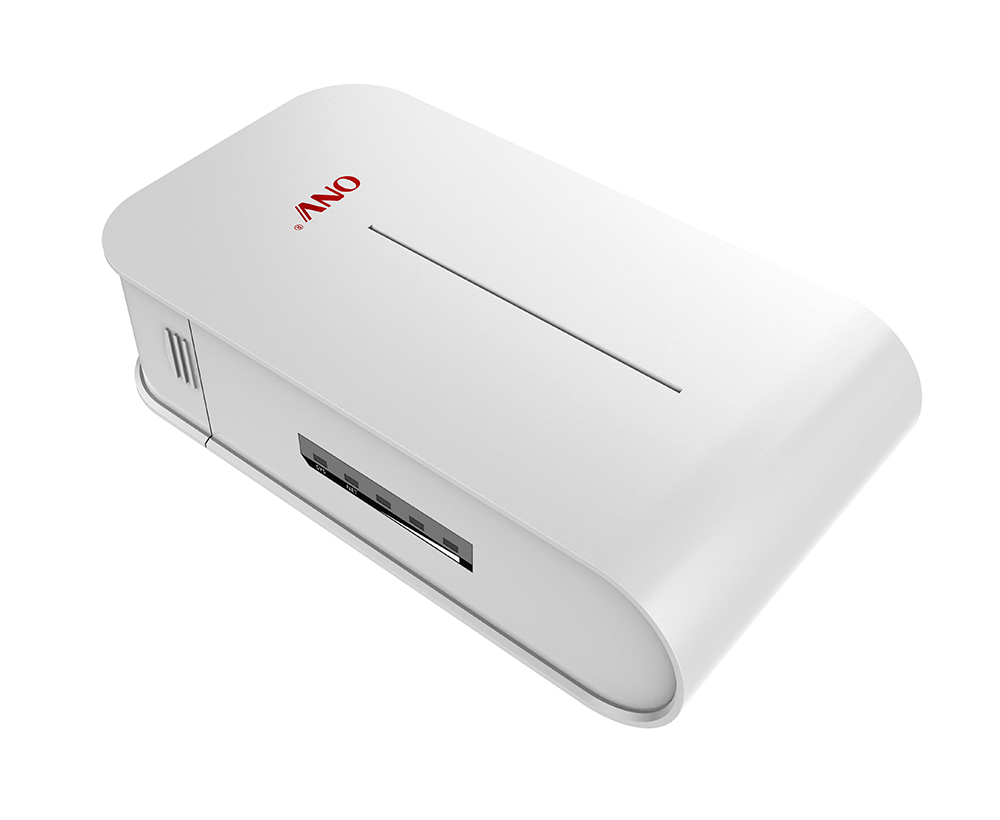

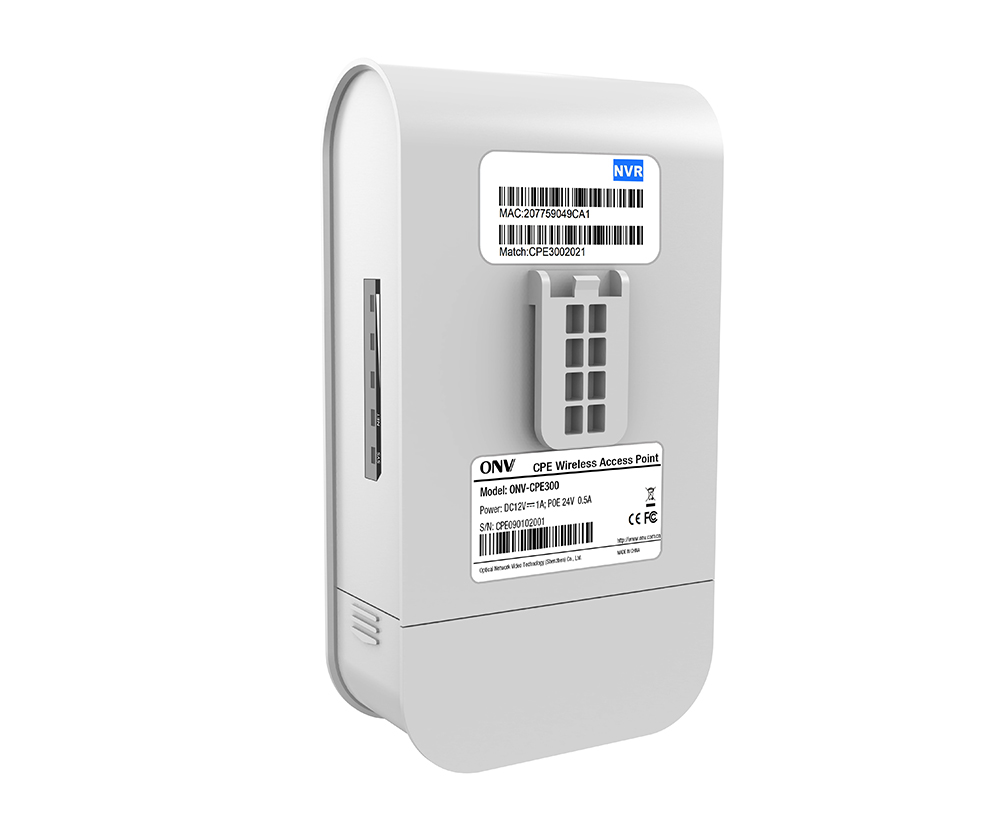

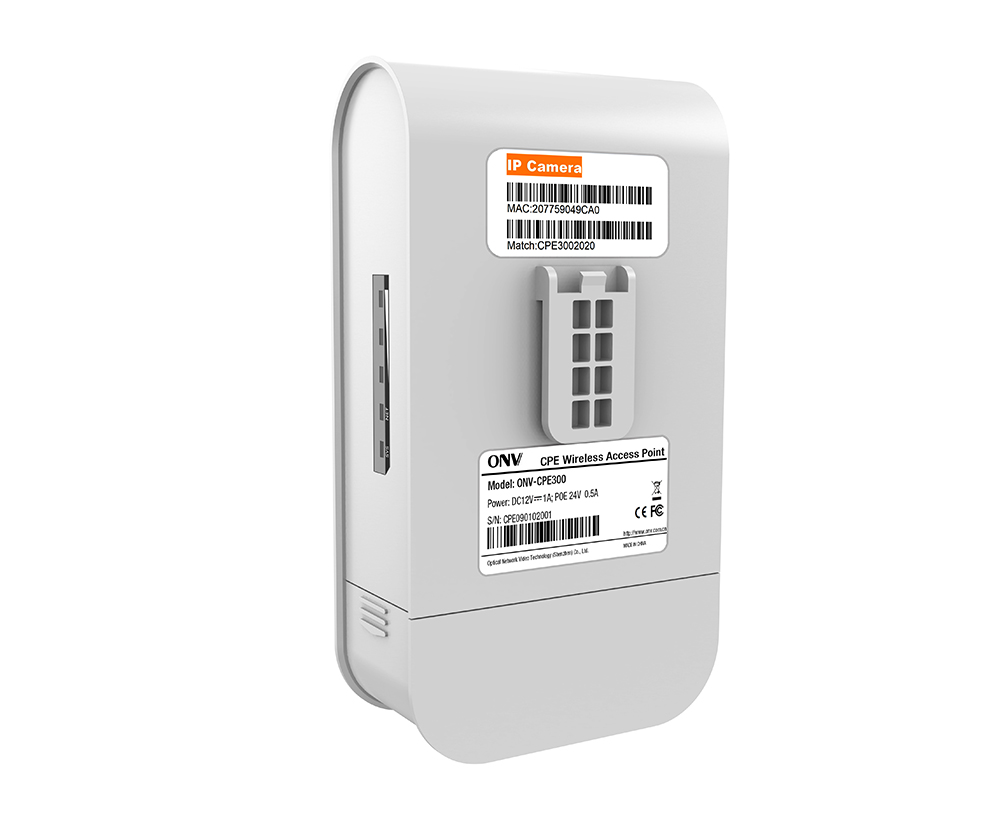

ONV-CPE300 wireless bridge is a high-performance, high-stability 2.4GHz multi-purpose wireless transmission product developed by ONV. The wireless transmission rate is up to 300Mbps, and the built-in 8dBi high-gain directional antenna is adopted, so that the distance between receiving and transmitting can reach 1KM. This product supports relay and wireless ISP function, which can realize long-distance wireless signal transmission. ONV-CPE300 adopts dust-proof, waterproof, and lightning-proof housing and antenna, which can work stably for a long time in various outdoor environments. It supports DC12V power supply/24V POE main/standby dual power supply and remote reset functions for easy management. It can realize point-to-point, point-to-multi-point, and outdoor wireless coverage and other applications to meet the wireless transmission coverage requirements of elevator monitoring, rural areas, factory districts, scenic spots, squares, and other indoor and outdoor environments.
FEATURE
High gain antenna, 300M high-speed transmission
◇ Adopt 802.11n MIMO wireless technology, provide 300Mbps wireless transmission rate.
◇ Built-in high gain dual-polarized antenna, the signal is stronger and the transmission is farther.
Engineering-level hardware design, professional outdoor transmission
◇ Qualcomm high-performance enterprise-level chips, industrial-grade materials, high-speed and stable anti-interference, meet the needs of various installation environments.
◇ Industrial-grade integrated molding shell, with IP61 dustproof, waterproof, adaptable to various harsh environments such as wind and sun, rain, snow, and freezing, and can work normally and stably even in extremely high and low-temperature environments.
Easy to install and easy to maintain
◇ The factory settings are free of matching. Support one-key quick digital pairing, easy and efficient.

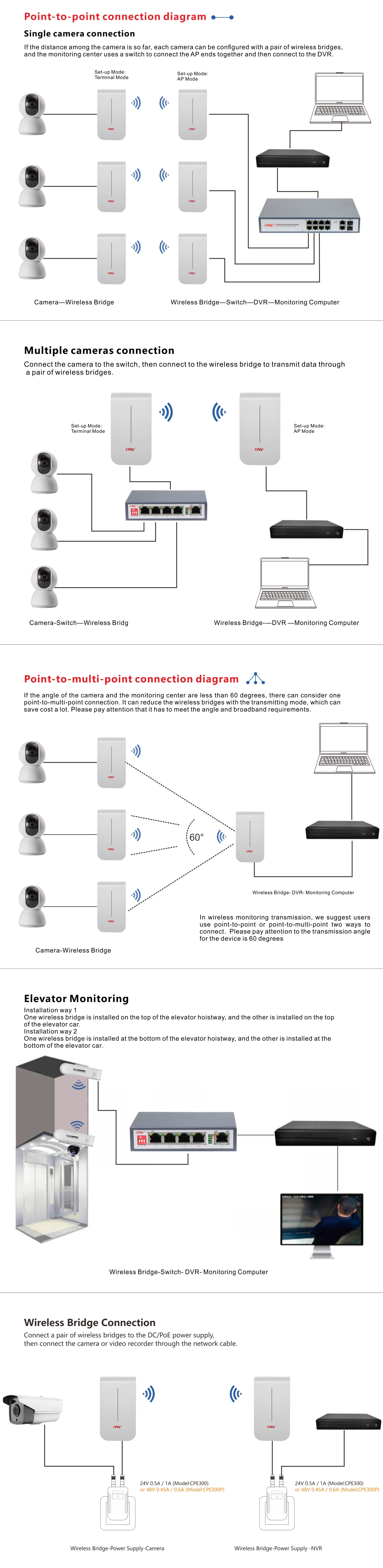

◇ Support point-to-point, point-to-multi-point data transmission, centralized management.
◇ The installation is simple and convenient, and the signal strength is intelligently indicated.

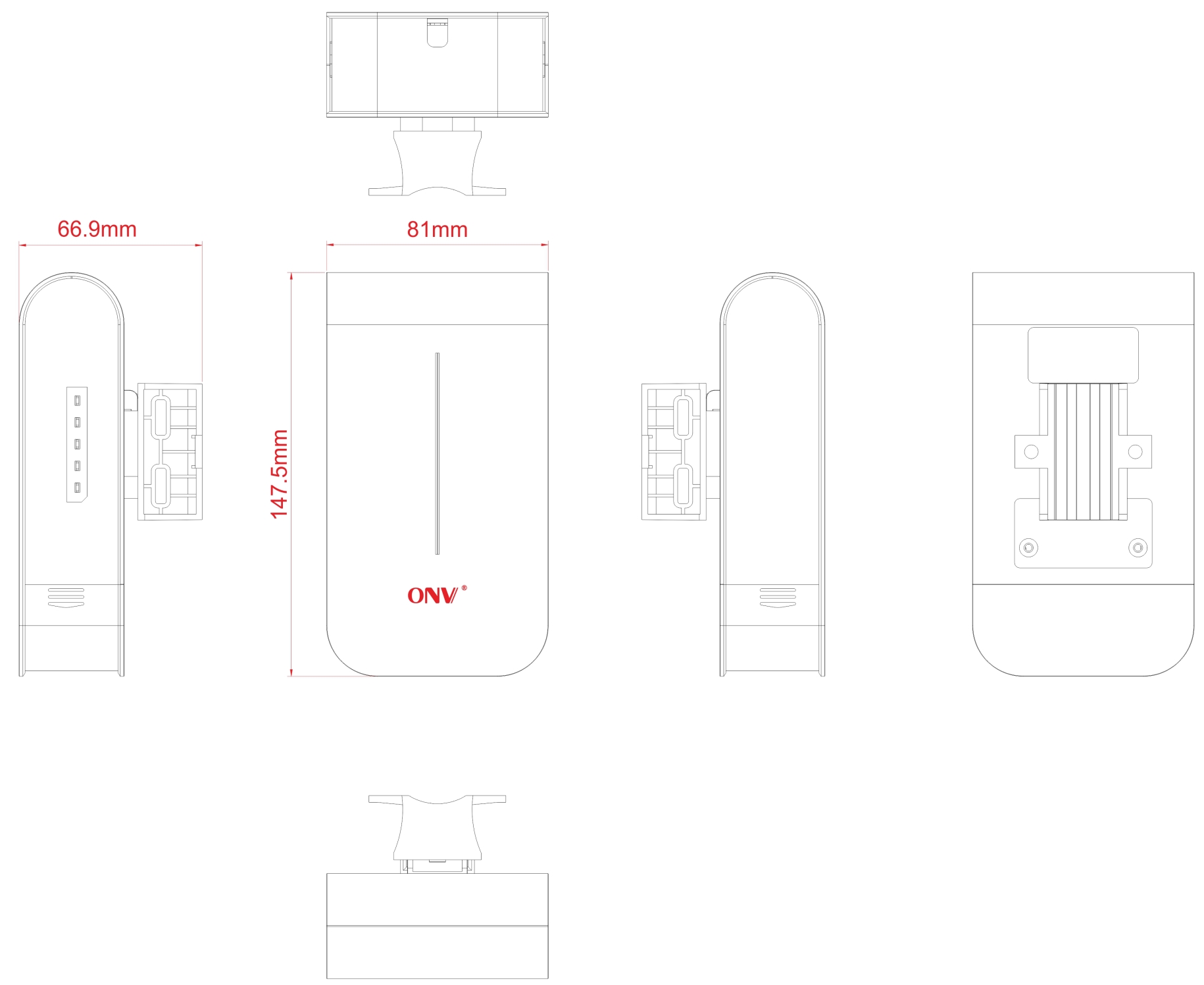

DIMENSION
ORDERING INFORMATION
Model
Description
Power Supply
ONV-CPE300
2.4G/300Mbps wireless bridge can support 1*10/100M 24VDC passive PoE power supply, transmission distance 1km, pole-mounted installation.
24VDC POE power supply
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
2.4G/300Mbps wireless bridge |
1 |
Pair |
|
|
24VDC PoE power supply |
2 |
PC |
|
|
Double head RJ45 network cable |
2 |
PC |
|
|
Hanging ear and stainless steel band |
1 |
Pair |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-CPE300 |
||
|

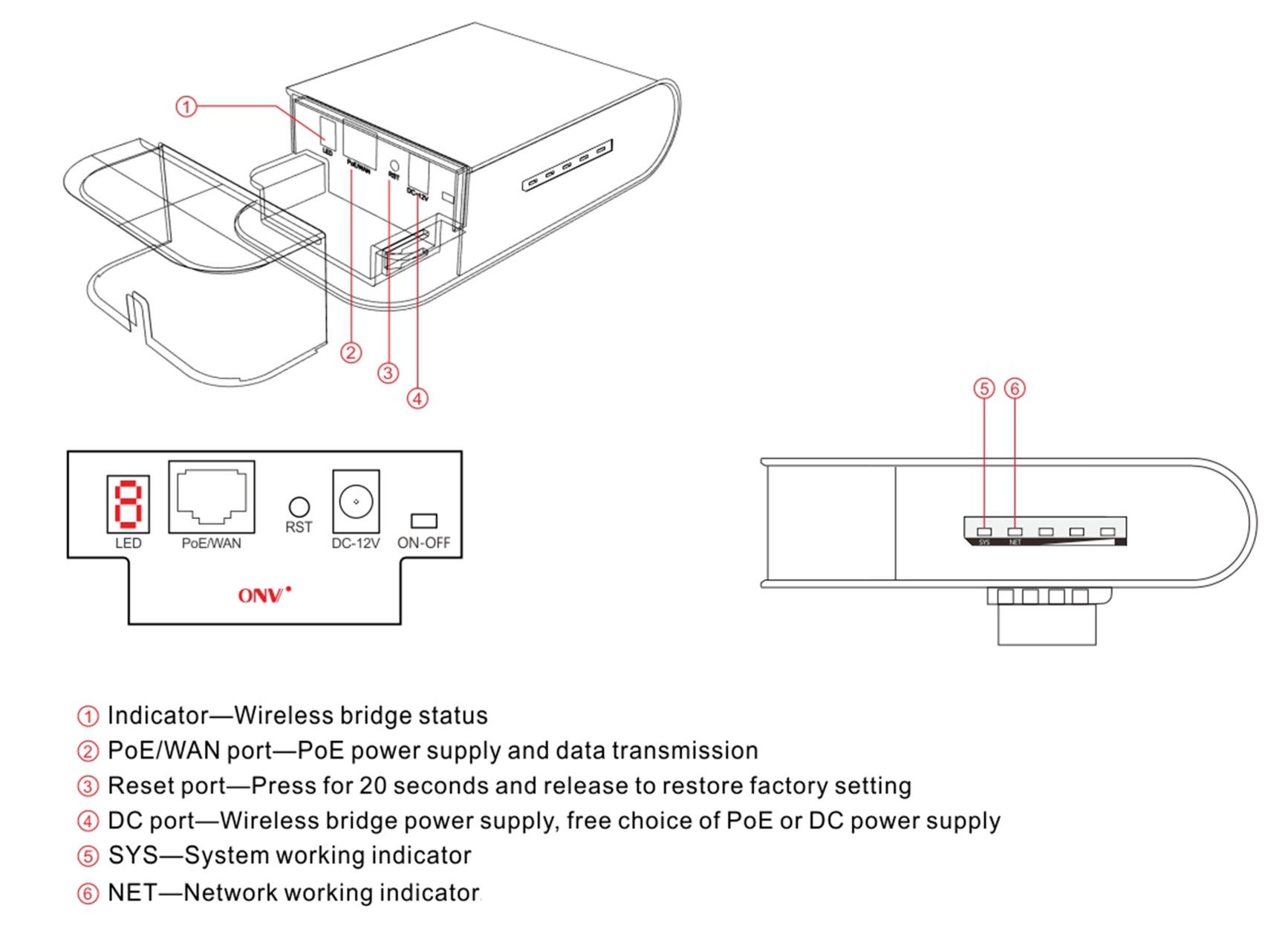

Interface Characteristics |
|||
|
Fixed Port |
1*10/100M 24V PoE port(Data/Power) 1*DC5521 12VDC power port |
||
|
Ethernet Port |
10/100Base-TX auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
||
|
Chip Parameter |
|||
|
Chip |
AR9531, 650MHz |
||
|
Network Protocol |
IEEE802.3u 100Base-TX, IEEE802.11b/g/n |
||
|
DDR2 Memory |
64MB |
||
|
Flash |
8MB |
||
|
RF Design |
Dual-stream single frequency, 2T2R 300M MIMO technology |
||
|
Working Frequency |
2.4~2.4835GHz,802.11b/g/n |
||
|
Transmit Power |
18dBi |
||
|
Antenna Type |
Built-in dual-polarization directional antenna, horizontal 60 degrees, vertical 30 degrees, gain 8dBi |
||
|
Transmission Rate |
300Mbps |
||
|
Wireless Transmission Distance |
1km(Max) |
||
|

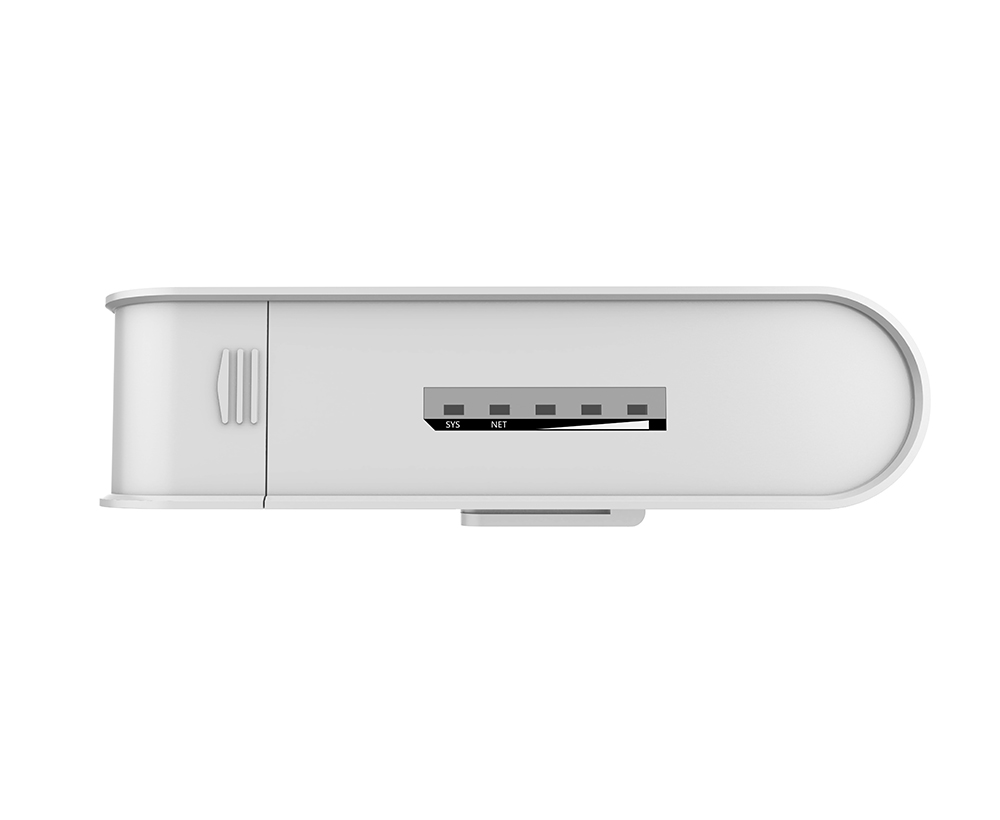

LED Indicator |
System: SYS (green), network: NET (green), signal indicator: (green) |
||
|
Reset Switch |
Yes, Press for 20 seconds and release to restore factory settings |
||
|
RF Parameter |
|||
|
Modulation Mode |
OFDM=BPSK,QPSK, 16-QAM, 64-QAM |
||
|
DSSS=DBPSK, DQPSK, CCK |
|||
|
Receiving Sensitivity |
802.11n(2.4GHz) |
802.11g |
802.11b |
|
-90dBm @ MCS0 |
- 90dBm @ 6Mbps |
- 95dBm @ 1Mbps |
|
|
-70dBm @ MCS7 |
- 72dBm @ 54Mbps |
- 90dBm @ 11Mbps |
|
|
-90dBm @ MCS8 |
|
|
|
|
-68dBm @ MCS15 |
|
|
|
|
Transmit Power |
802.11n(2.4GHz) (±1.5dBm) |
802.11g(±1.5dBm) |
802.11b(±1.5dBm) |
|
14dBm@ MCS0~2/MCS8~10 |
18dBm @ 6~24Mbps |
18dBm @1~11Mbps |
|
|
14dBm @ MCS3/MCS11 |
18dBm @ 36Mbps |
|
|
|
14dBm @ MCS4/MCS12 |
16dBm @ 48Mbps |
|
|
|
14dBm @ MCS5/MCS13 |
16dBm @ 54Mbps |
|
|
|
14dBm @ MCS6/MCS14 |
|
|
|
|
14dBm @ MCS7/MCS15 |
|
|
|
|
Power Supply |
|||
|
Power Supply Mode |
12VDC or 24VDC Passive PoE power supply |
||
|
Power Consumption |
Standby<3W,Full Load≤5W |
||
|
Power Supply/ Input Voltage |
Wall-mounted 24VDC PoE. Input AC:100~240V 50-60Hz 0.5A |
||
|
Physical Parameter |
|||
|
Operation TEMP / Humidity |
-40~+70°C;5%~90% RH Non condensing |
||
|
Storage TEMP / Humidity |
-40~+75°C;5%~95% RH Non condensing |
||
|
Dimension (L*W*H) |
147.5*81*44mm |
||
|
Net /Gross Weight |
<0.2kg / <1.0kg |
||
|
Installation |
Pole-mounted, Wall-mounted |
||
|
Certification & Warranty |
|||
|
Lightning protection / protection level |
Port lightning protection: 6KV 8/20us; Protection level: IP61 |
||
|
Certification |
FCC, CE -EMC /LVD/RF, RoHS |
||
|
Warranty |
3 years, lifelong maintenance. |
||
|
Software Features |
|||
|
Operating Mode |
Wireless bridge mode or AP mode or universal interrupt mode |
||
|
Wireless Set-up |
BSSID |
||
|
Automatically select the signal channel |
|||
|
Distance control 802.1x ACK time output |
|||
|
Multiple SSIDs, Max 4 can be configured |
|||
|
Wireless Security
|
Hide SSID |
||
|
WPA/WPA2 (WPA-EAP uses TKIP) |
|||
|
WPA/WPA2 (WPA-PSK uses TKIP or AES) |
|||
|
WEP, 64/128/152 bit WEP security password |
|||
|
System Set-up |
WEB configuration (HTTP/remote login) |
||
|
Software Upgrade |
WEB webpage or TFTP to upgrade the software |
||
|
User Management |
Configurable user and password |
||
|
System Monitoring |
Equipment and network status statistics |
||
|
Log |
Local log, host log, file transfer log |
||
|
Restore Set-up |
Restore factory default set-up |
||
|
Backup Function |
Back up the system configuration and restore the user's configuration when needed |
||
